W6-S  N300 in-wall Wireless Access Point

N300 in-wall Wireless Access Point

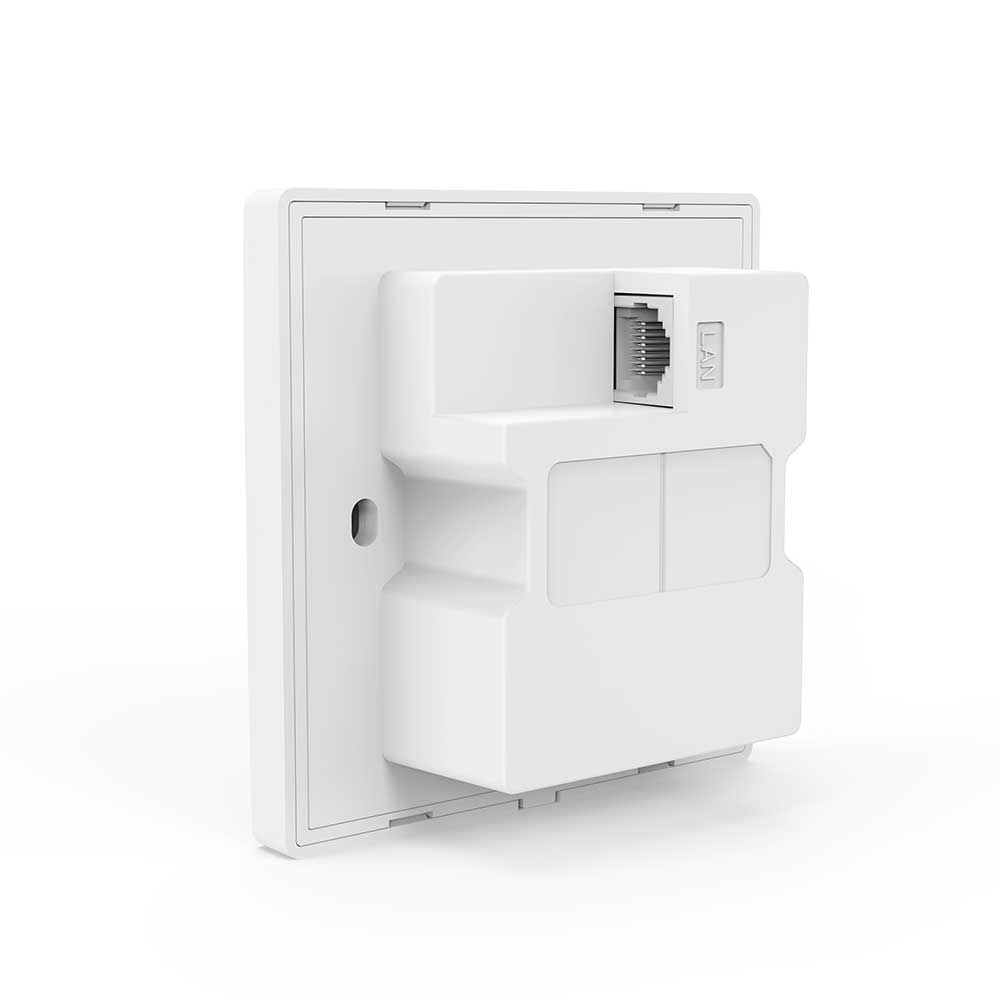

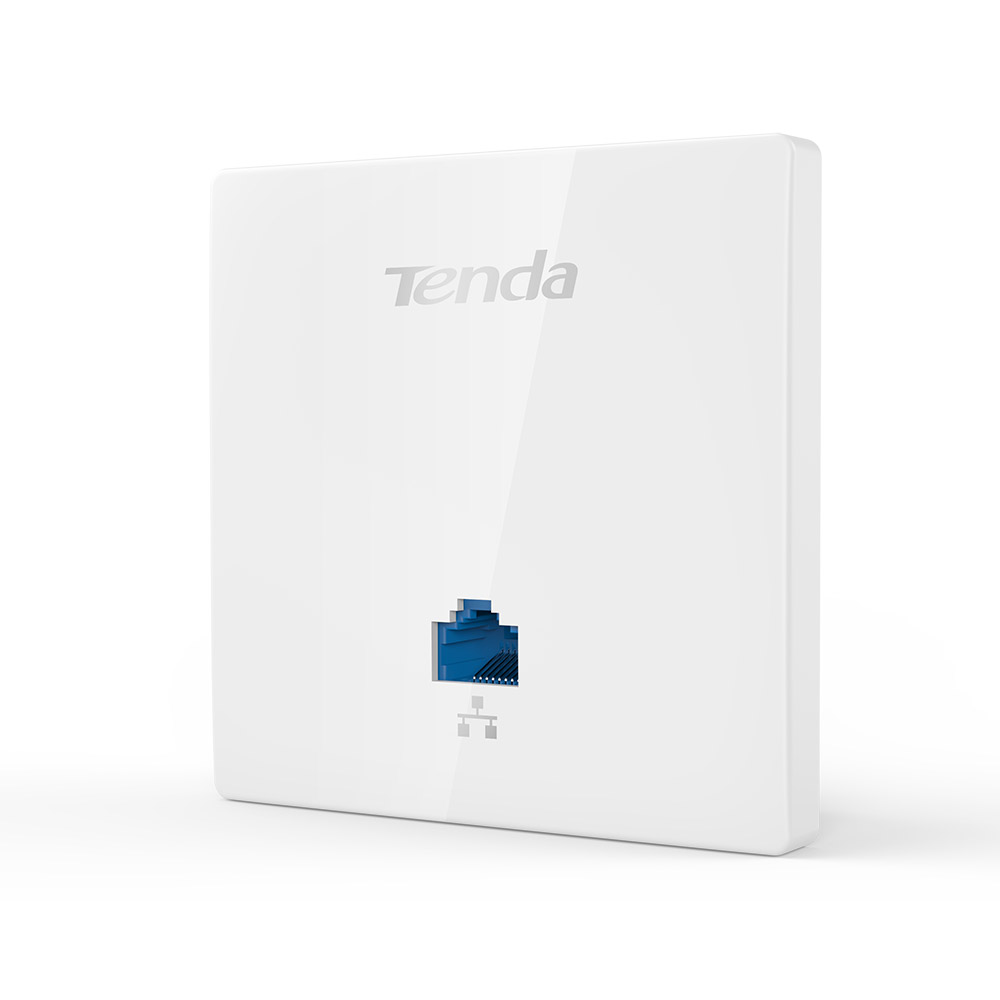

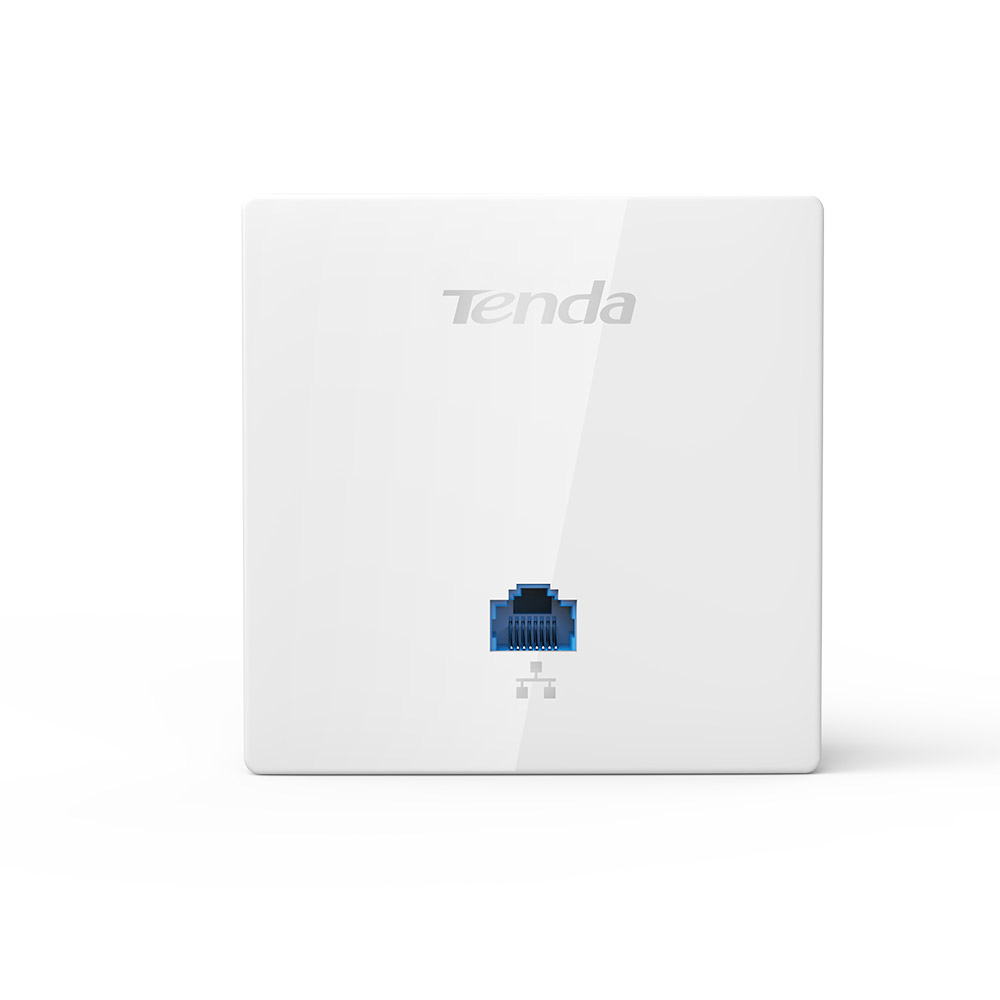

W6-S adopts of 86mm Type wall mount junction box design to deploy into the existing wall jack.It will pose no problem to neighbourhood panels or other decorations.W6-Stransfer rates of up to 300Mbps on the frequency bands for faster file transfers and smoother video streaming.
Datasheet
You can click here to export the current parameters (.docx)
ModelW6-S
CategoryIn-wall
Dimension86*86*34.8mm
InterfaceOne 10/100 Mbps Ethernet Port
One 10/100 Mbps Ethernet Port (PoE)
Button1*Reset
LED Indicator1*SYS
Maximum Power Consumption3.4W
Power SupplyPoE 802.3af
Max. Number of Clients64
Recommended Clients5
Antenna2*2dBi
2.4GHz maximum power18+/-1.5dBm
Reception Sensitivity2.4GHz 802.11b -90dBm
2.4GHz 802.11n (MCS7) -72dBm
Frequency Range2.4GHz
Standard&ProtocolIEEE 802.11b/g/n
Maximum wireless speed300Mbps
Bandwidth20MHz/40MHz
Operating ModeAP/Client AP
Max. No. of SSID2.4GHz: 4
Hide SSIDSupport
OFDMASupport
BeamformingSupport
WEPSupport
WPA-PSKSupport
WPA2-PSKSupport
WPASupport
WPA2Support
Access controlSupport
Adjustable power transmitSupport
Automatic channelSupport
AP isolationSupport
Guest networkSupport
Connected clients controlSupport
RSSI ThresholdSupport
Weak signal terminal eliminationSupport
Prioritize 5 GHzSupport
VLAN tagging for SSIDSupport
LED controlSupport
Diagnostics toolSupport
Reboot at specified intervalSupport
Scheduled rebootSupport
System LogsSupport
Device managementM3 or Tenda Router with AP Controller feature
Firmware upgradeSupport
RebootSupport
ResetSupport
Backup configurationSupport
Restore configurationSupport
Default IP192.168.0.254
Default usernameadmin
Default passwordadmin
Operation Temperature-10℃ ~ 45℃
Operating Humidity10%~90% non-condensing
Storage Temperature-30℃ ~ 70℃
Storage Humidity10%~90% non-condensing
