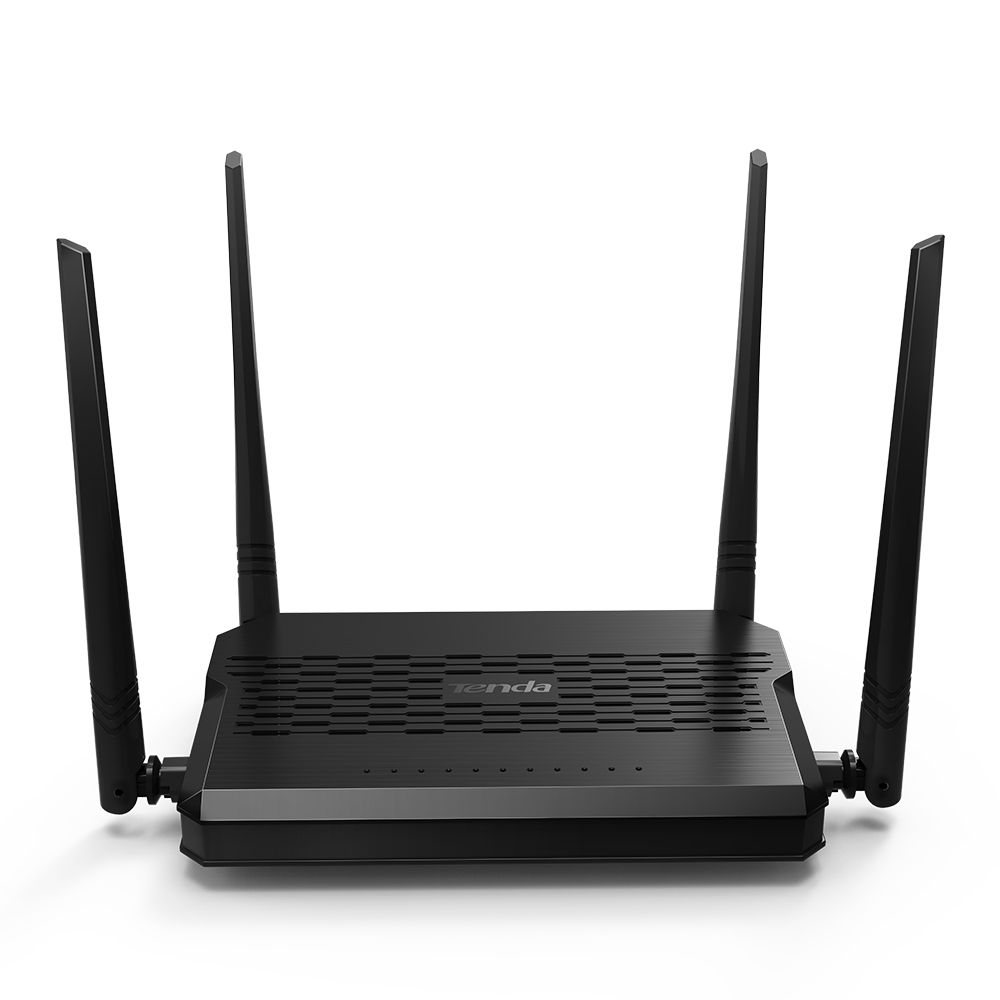

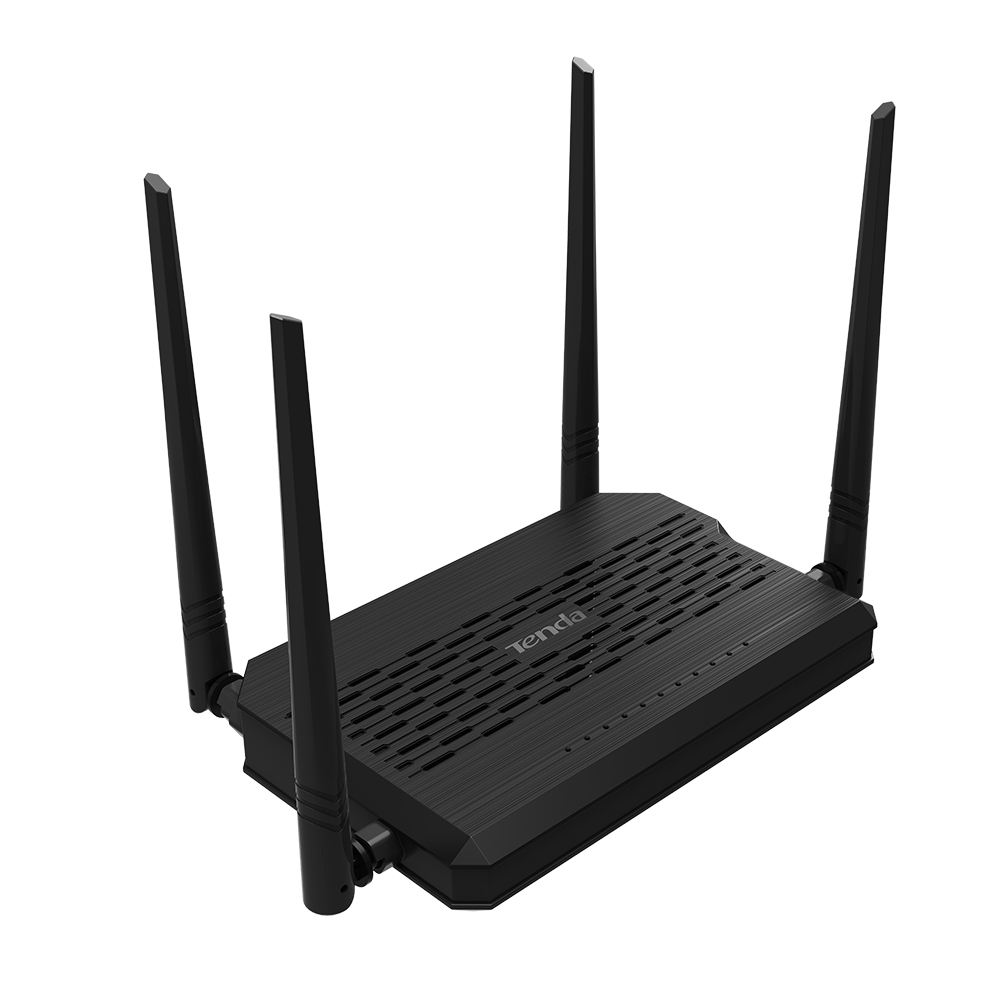

D305  N300 Blazing-fast & Stable ADSL2+ Modem Router

N300 Blazing-fast & Stable ADSL2+ Modem Router

Tenda D305 combines the function of 300Mbps wireless router , ADSL2+Modem in one device to provide one-stop networking solution. With external 4*5dBi high gain omni-directional antennas with external PA, D305 can provide ultimate WiFi coverage for large house...
Datasheet
You can click here to export the current parameters (.docx)
IEEE StandardsIEEE802.11b/g/n,IEEE 802.3, 802.3u
xDSL Standard&ProtocolG.994 compliant
ITU-T G.992.1(G.dmt)
ITU-T G.992.2 (G.lite)
ITU-T G.992.3 (G.dmt.bis)
Annex A/L/M ITU-T
G.992.5 Annex A
InterfacesRJ11 × 1
Power Jack × 1
USB2.0 × 1
10/100Mbps LAN × 3
10/100Mbps WAN × 1
Dimension190 × 125 × 26.5mm(W * D * H)
ButtonWLAN ON/OFF
RST/WPS
Power On/Off Button
External Power SupplyInput: 100 - 240V 50/60Hz
Output: 12V1A
LED IndicatorPower
SYS
Internet
USB
WPS
WLAN
LAN(1,2,3,4)
DSL
CertificationCE, FCC ,RoHS
ProtocolsSupports IPv4 and IPv6
ATM/PPP ProtocolsPPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
MER\IPoE (RFC 1483 Routed)
WAN ConnectionPPPoE
Dynamic IP
Static IP
Bridge
Business TypeTR069
Internet
IPTV
ServicesDHCP
Dynamic DNS
IGMP Proxy
UPnP
DHCP ServerDHCP Server
Client List
Address Reservation
Quality of ServiceATM QoS
Bandwidth Control
ManagementLAN IP Setting
System Log
Device Info
Remote Management
Internet Time
Backup
Advanced FunctionsPVC Configuration
MAC Clone
DSL Settings
Interface Grouping
QoS( Based IP )
FirewallMAC Filtering
IP/Port Filtering
URL Blocking
DOS
TR069ACS, Connection request
Others functionsPort Forwarding
Port Triggering,DMZ
UPnP
DDNS
IGMP Multicast
TR069
Wireless StandardIEEE 802.11b/g/n 2.4GHz
Bandwidth20M/40M
Channel Rangeauto
CH1-CH13
Antenna4 * 5 dBi Antenna
Wireless Speed11n 300M
Transmission Power<20 dBm(EIRP)
Wireless FunctionsEnable/Disable Wireless Radio
Wireless Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
Wireless MAC Filtering
Storage Temperature-40°c ~ 70°c
Operation Temperature0℃~40℃ (32℉ ~104℉)
Operating Humidity10% ~ 90% (Non-condensing)
Storage Humidity5% ~ 90% (Non-condensing)
Package ContentsD305 × 1
Quick Installation Guide x 1
Power Adapter x 1
Ethernet cable (RJ45) x 1
Telephone cable ( RJ11) × 2
ADSL Splitter x 1
