4G300-How to login to the homepage of portable router

How to login to homepage of the portable 4G router?

Product line: 3G/4G   Model number: 4G300

Part 1: Connect the devices

Part 2: Configure your computer

Part 3: Login to the homepage

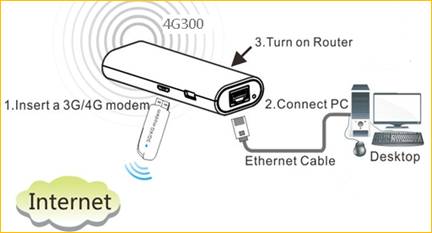

Connect the RJ-45 port of the router with an Ethernet cable. The topology is as below:



1 Click on Network Connection Icon on the system bar, then click on Open Network and Sharing Center. (Here is for windows 7, other operating system please click HERE.)

说明: 无线信号.png

2 Click on Change adapter settings.

说明: change.png

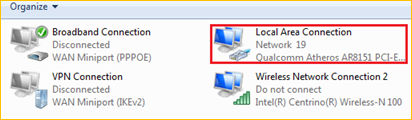

3 Right click on Local Area Connection, then choose Properties option.

说明: local.png

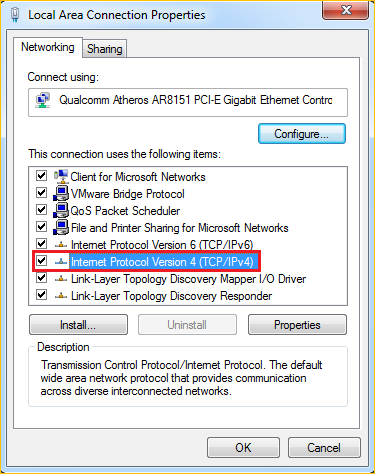

4 Double click on Internet Protocol Version 4(TCP/IPv4)

说明: IP4.png

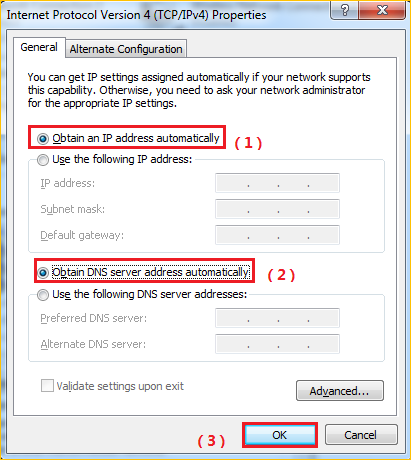

5 Choose Obtain an IP address automatically and Obtain DNS server address automatically and then click OK.

说明: obtain IP.png

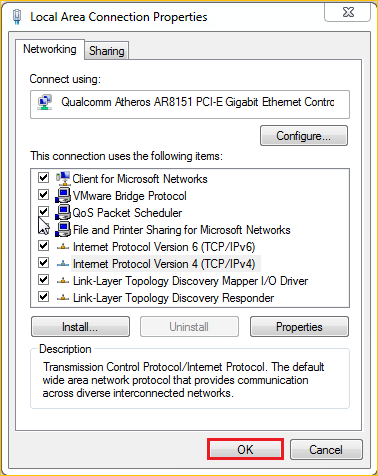

6 Also click on OK on the first Local Connection Properties window

说明: OK.png

1 Open a browser then type 192.168.2.1 in the Address bar, click Enter.

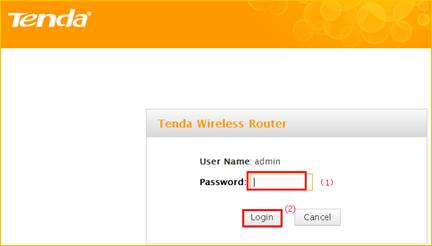

2 Type the Password as admin, and then click on Login button to login the setting page.

NOTE:

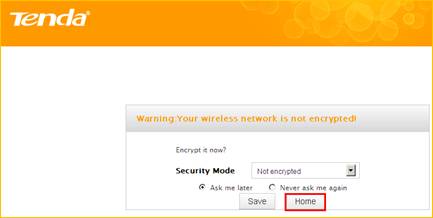

If you get this page, please click home directly to the main page.
