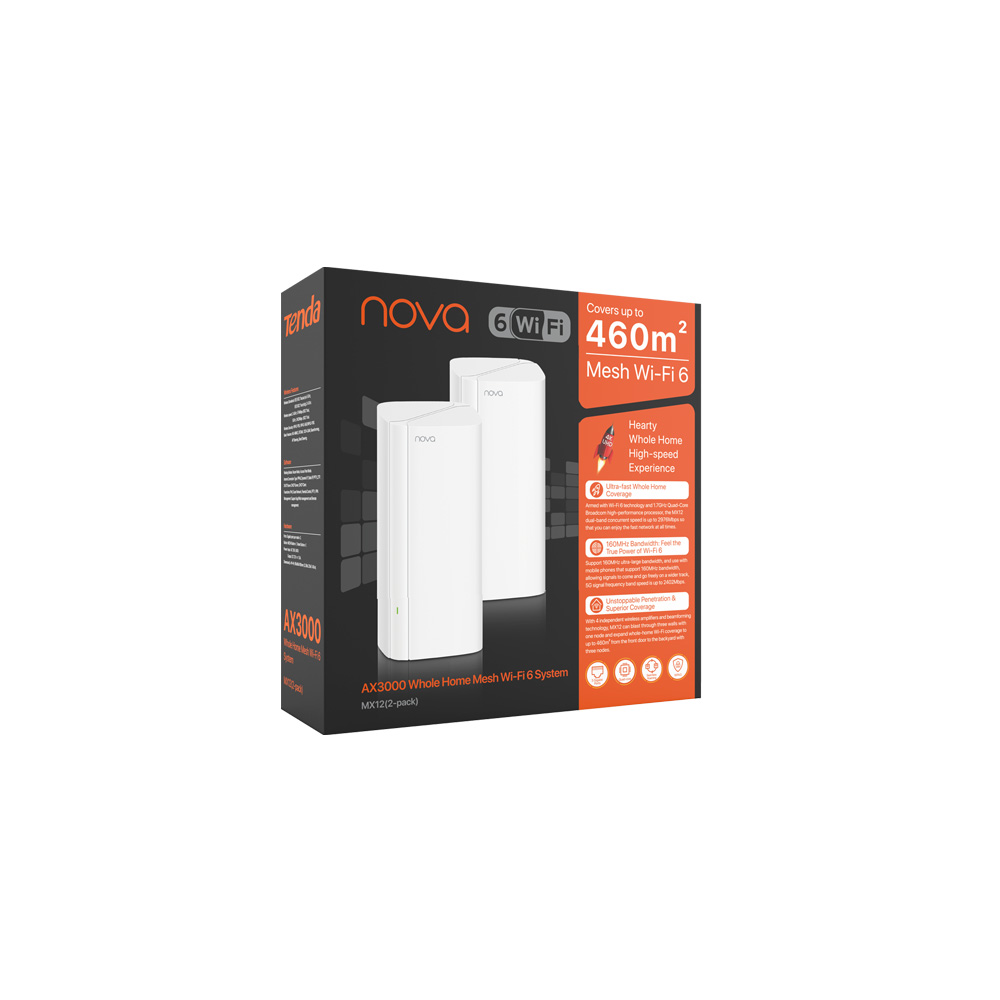

MX12 2-Pack Sistem mesh Wi-Fi 6 AX3000, pachet 2 routere

Nova MX12 este un sistem mesh whole-home Wi-Fi 6 AX3000 care, datorită tehnologiei Beamforming și celor 4 amplificatoare independente, asigură o acoperire wireless de până la 460 mp cu 2 noduri și până la 650 mp cu 3 noduri. Beneficiind de o rată de transfer combinată de până la 2976 Mbps, cu 66% mai mult decât AX1800, viteza wireless AX3000 și porturile gigabit permit utilizarea maximă a semnalului de mare viteză de la furnizorul de internet. Echipat cu un procesor quad-core Broadcom de 1.7 GHz și 256 MB memorie, MX12 poate deservi mai multe echipamente simultan, oferind viteză mare și latență redusă pentru jocuri online, redare video 4K și aplicații VR HD fără întreruperi. Instalarea este simplă, nodurile interconectându-se automat, iar sistemul dispune de un buton pentru conectarea Mesh. Cu MX12, puteți crea rapid o rețea Wi-Fi mesh inteligentă și rapidă pentru întreaga familie.

Documente

Whole Home Mesh Wi-Fi 6,6E System Quick Installation Guide(multi-language)

MX12-2Pack Installation Guide

Safety and Regulatory Information

MX12 User Guide

MX12 Datasheet

Symbols on Products and Materials

Fișă tehnică

Puteți face clic aici pentru a exporta parametrii actuali (.docx)
Standarde	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Porturi Ethernet	3 porturi 10/100/1000 Mbps RJ45 per nod
Antene	4 antene interne 3 dBi
Butoane	Reset MESH
Alimentare	Intrare: CA 100-240V, 50/60Hz, 0.6A Ieșire: CC 12V, 1.5A
Dimensiuni	86 x 86 x 190 mm
Indicatoare LED	Indicator LED 3 culori (verde, galben, roșu)
Standarde Wi-Fi	IEEE 802.11a/b/g/n/ac/ax
Tehnologii roaming Wi-Fi	IEEE8 02.11k/v
Standard mesh	Wi-Fi EasyMesh
Rată transfer Wi-Fi	2.4 GHz: 574 Mbps (802.11ax) 5 GHz: 2402 Mbps (802.11ax)
Benzi	CE: 2.4 GHz: 2412-2472 MHz (CH1-CH13) 5 GHz: 5150-5350 MHz (CH36-CH64) FCC: 2.4 GHz: 2412-2462 MHz (CH1-CH11) 5 GHz: 5150-5350 MHz (CH36-CH64) 5725-5850 MHz (CH149-CH165)
Putere transmisie	CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz)
Alte caractersitici	Beamforming MU-MIMO AP Steering Band Steering OFDMA 1024-QAM
Securitate wireless	WPA3-SAE/WPA2-PSK
Moduri de lucru	Router AP
Moduri de conectare la internet	PPPoE, Dynamic IP, Static IP, PPPoE (Rusia), PPTP (Rusia), L2TP (Rusia)
DHCP	DHCP Server, DHCP Client List
Opțiuni avansate de redirecționare și acces	Port Forwarding, DMZ Host, UPnP
Control parental	Client Filter URL Filter Time Limit
Firewall	Forbid TCP/UDP flood attack
VPN	PPTP Server, PPTP/L2TP Client
DDNS	Setare manuală server DNS
Caracteristici speciale	Ethernet Backhaul IPv6 IPTV
Altele	Management prin aplicație și web Rețea vizitatori Actualizare online firmware
Temperatură operare	0 - 40 ℃
Temperatură depozitare	-40 - 70 ℃
Umiditate operare	10% - 90% RH fără condens
Umiditate depozitare	5% - 90% RH fără condens
Tenda WiFi - aplicația de gestionare de la distanță	Disponibil pentru iOS 9.0, Android 4.4 sau superioare
Certificări	CE, FCC, RoHS
Conținut pachet	2 unități Mesh12X, 2 alimentatoare, cablu Ethernet Gigabit, ghid instalare rapidă
