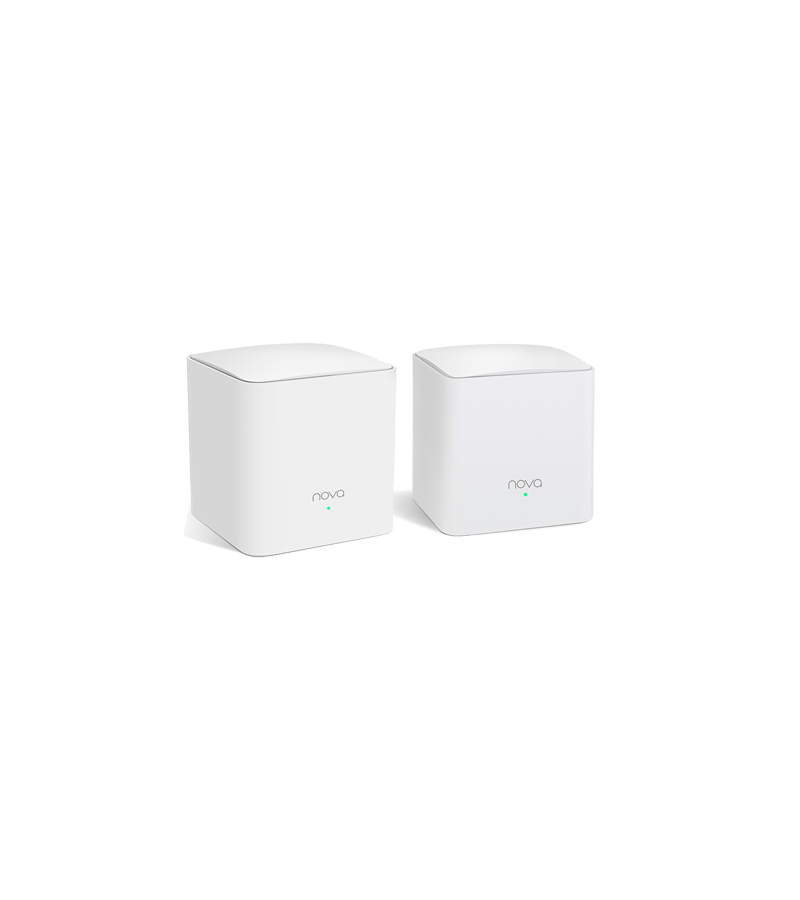

MW5G 2-Pack AC1200 Whole-home Mesh WiFi System

The Tenda nova MW5G is a whole home mesh WiFi system designed for larger households with 100 Mbps or greater broadband services. Powered by Tenda's mesh technology, each node automatically connects to the others, creating a distributed network throughout your entire home. All nodes feature gigabit ports,getting the most out of your high speed broadband service and ensures smooth streaming of 4K videos. The other nodes automatically connect with pre-paired configuration, making setup a breeze.

Explore

Standard&Protocol	IEEE 802.3, IEEE 802.3u, IEEE 802.4ab
Ethernet Interface	2 x 10/100/1000Mbps RJ45 ports per node
Antenna	2 x Internal antenna
Button	1 x Reset Button
Power	Input: 100-240V—50/60Hz, 0.6A Output: 12V1A
Dimension	91 x 91 x 93mm (3.58 x 3.58 x 3.66 in.)
LED Indicator	1 x Tri-color LED Indicator(Green,Yellow,Red)
Wireless Standard	IEEE802.11a/b/g/n/ac (WiFi 5 wave 2)
Wireless roaming	Comply with IEEE802.11k/v/r
Mesh network Standard	IEEE802.11s
Rate	2.4GHz: 300Mbps 5GHz: 867Mbps
Frequency	2.4~2.4835GHz 5.15~5.25GHz 5.725~5.85GHz
Transmission Power	CE: <20dBm(2.4G) <23dBm(5G)
Basic Features	SSID Broadcast Beam Forming MU-MIMO
Wireless Security	WPA/WPA2-PSK(default)
Operating Mode	Router Mode,Bridge Mode
Internet Connection Type	PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia)
DHCP Server	DHCP Server, DHCP Client List
Virtual Server	Port Forwarding, UPnP
Parental Control	Client Filter
Firewall	Forbid TCP/UDP flood attack
VPN	PPTP/L2TP/IPsec pass through
DNS	Support manually setting DNS server
Special Features	Smart QoS (Gaming, Video & Audio, Download)
Others	Auto-sensing internet connection Support App management and Remote management Guest Network Firmware upgrade online
Operation Temperature	0 ~ 40 ℃
Storage Temperature	-40 ~ 70 ℃
Operating Humidity	10%~90% RH non-condensing
Storage Humidity	5%~90% RH non-condensing
APP installation	Available in iOS 8.0 or later, Android 4.0 or later
Certification	CE, FCC, RoHS,EAC,IC
Package Contents	Mesh5 x 2, Power adapter x 2, QIG x 1, RJ45 Gigabit Ethernet cable x 1
