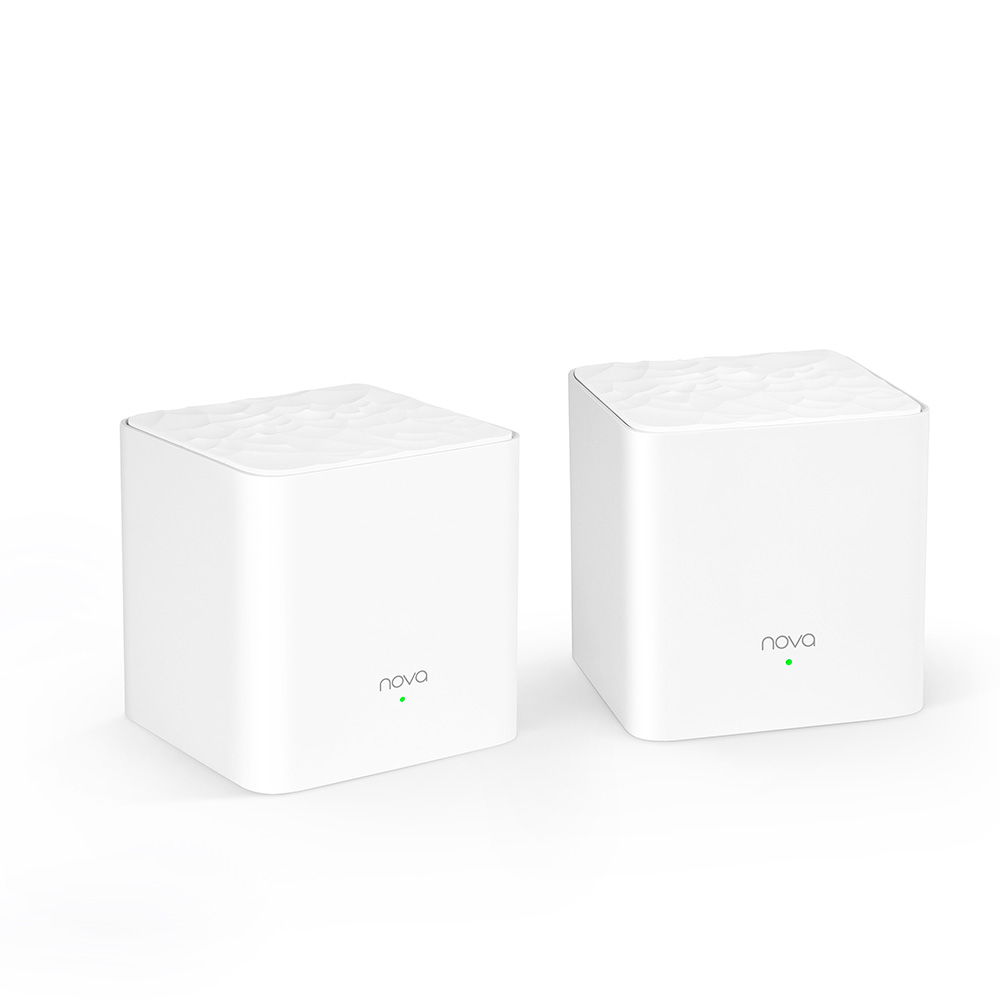

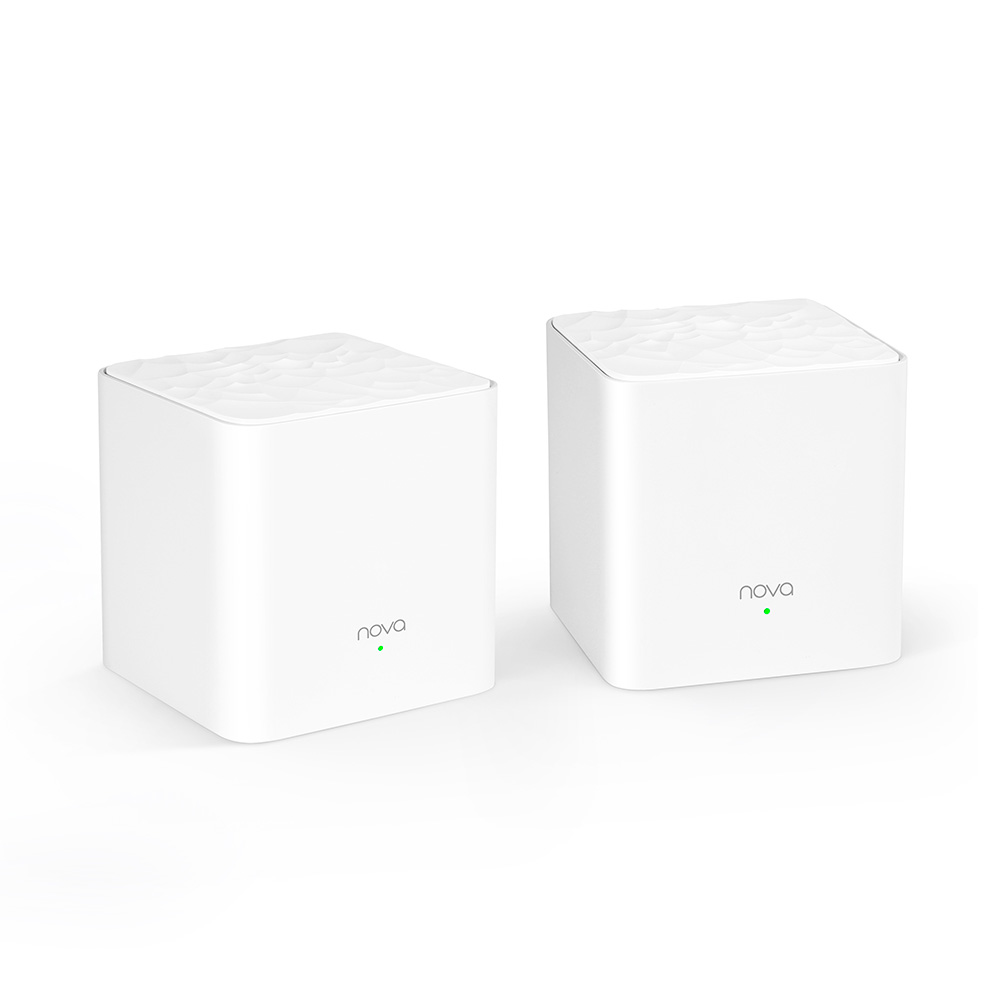

MW3 2-Pack AC1200 Whole Home Mesh WiFi System

AC1200 Whole Home Mesh WiFi System

Explore
MW3MW3MW3MW3
Documents
MW Series Safety and Regulatory InformationMW Series Safety and Regulatory Information
MW Series Whole Home Mesh WiFi System(2 or 3 pack) Quick Installation Guide(multi-language)MW Series Whole Home Mesh WiFi System(2 or 3 pack) Quick Installation Guide(multi-language)
MW3(2 pack) Installation GuideMW3(2 pack) Installation Guide
MW3(2 pack) User GuideMW3(2 pack) User Guide
MW3(2 pack) DatasheetMW3(2 pack) Datasheet
Symbols on Products and MaterialsSymbols on Products and Materials
Datasheet
Standard&ProtocolIEEE 802.3, IEEE 802.3u, IEEE 802.4ab
Ethernet Interface2 x 10/100Mbps RJ45 ports per node
Antenna2 x Internal antenna
Button1 x Reset Button
PowerInput: 100-240V—50/60Hz, 0.3A
Output: 9V1A
Dimension90 x 90x 90mm (3.54 x 3.54 x 3.54 in.)
LED Indicator1 x Tri-color LED
Indicator(Green,Yellow,Red)
Wireless StandardIEEE802.11a/b/g/n/ac (WiFi 5 wave 2)
Wireless roamingComply with IEEE802.11k/v/r
Mesh network StandardIEEE802.11s
Rate2.4GHz: 300Mbps
5GHz: 867Mbps
Frequency2.4~2.4835GHz
5.15~5.25GHz
5.725~5.85GHz
Transmission PowerCE:
<20dBm(2.4G)
<23dBm(5G)
Basic FeaturesSSID Broadcast
Beam Forming
MU-MIMO
AP Steering
Band Steering
Wireless SecurityWPA-PSK/WPA2-PSK(default)
Operating ModeRouter Mode,Bridge Mode
Internet Connection TypePPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
DHCP ServerDHCP Server, DHCP Client List
Virtual ServerPort Forwarding, UPnP
Parental ControlClient Filter
FirewallForbid TCP/UDP flood attack
VPNPPTP/L2TP/IPsec pass through
DNSSupport manually setting DNS server
Special FeaturesSmart QoS (Gaming, Video & Audio, Download)
OthersAuto-sensing internet connection
Support App management and Remote management
Guest Network
Firmware upgrade online
Operation Temperature0 ~ 40 ℃
Storage Temperature-40 ~ 70 ℃
Operating Humidity10%~90% RH non-condensing
Storage Humidity5%~90% RH non-condensing
APP installationAvailable in iOS 8.0 or later, Android 4.0 or later
CertificationCE, FCC, RoHS,EAC,IC
Package ContentsMesh3f x 2, Power adapter x 2, QIG x 1, RJ45 Gigabit Ethernet cable x 1
