i23  AC1200 Wave 2 Gigabit Access

AC1200 Wave 2 Gigabit Access

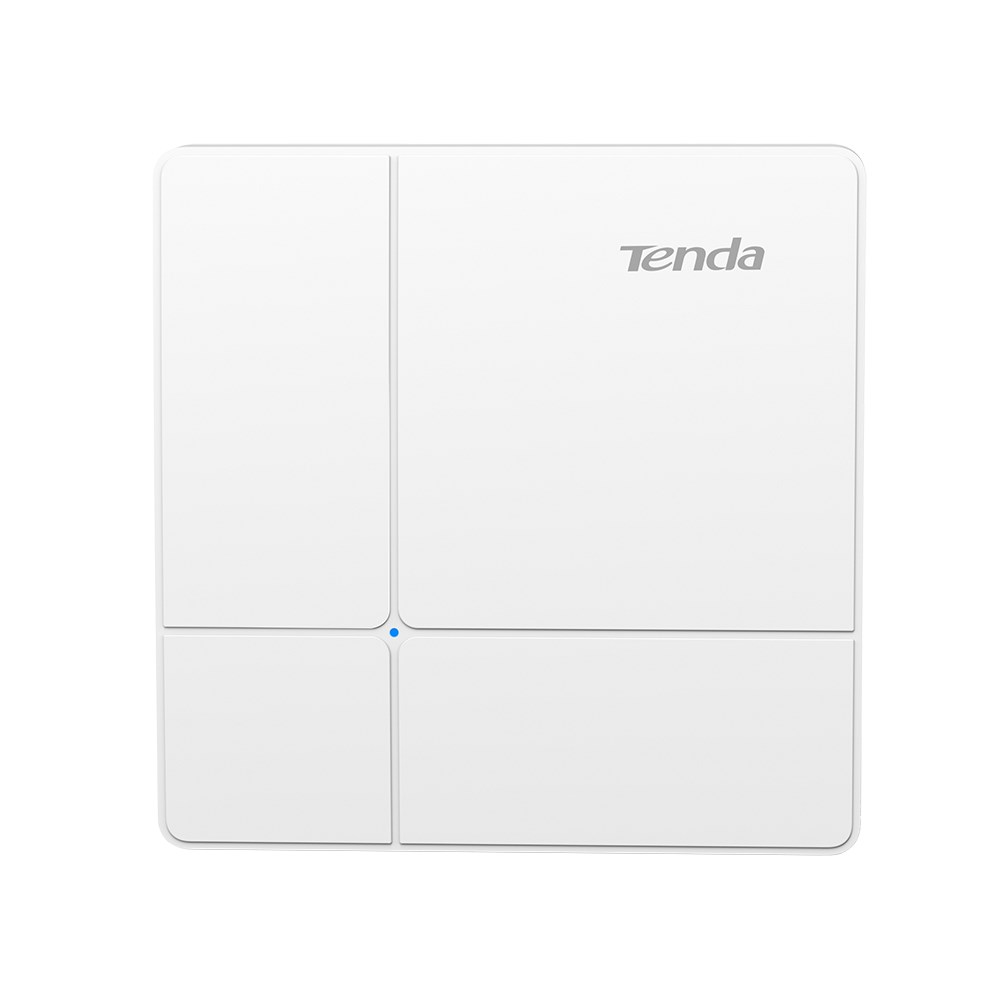

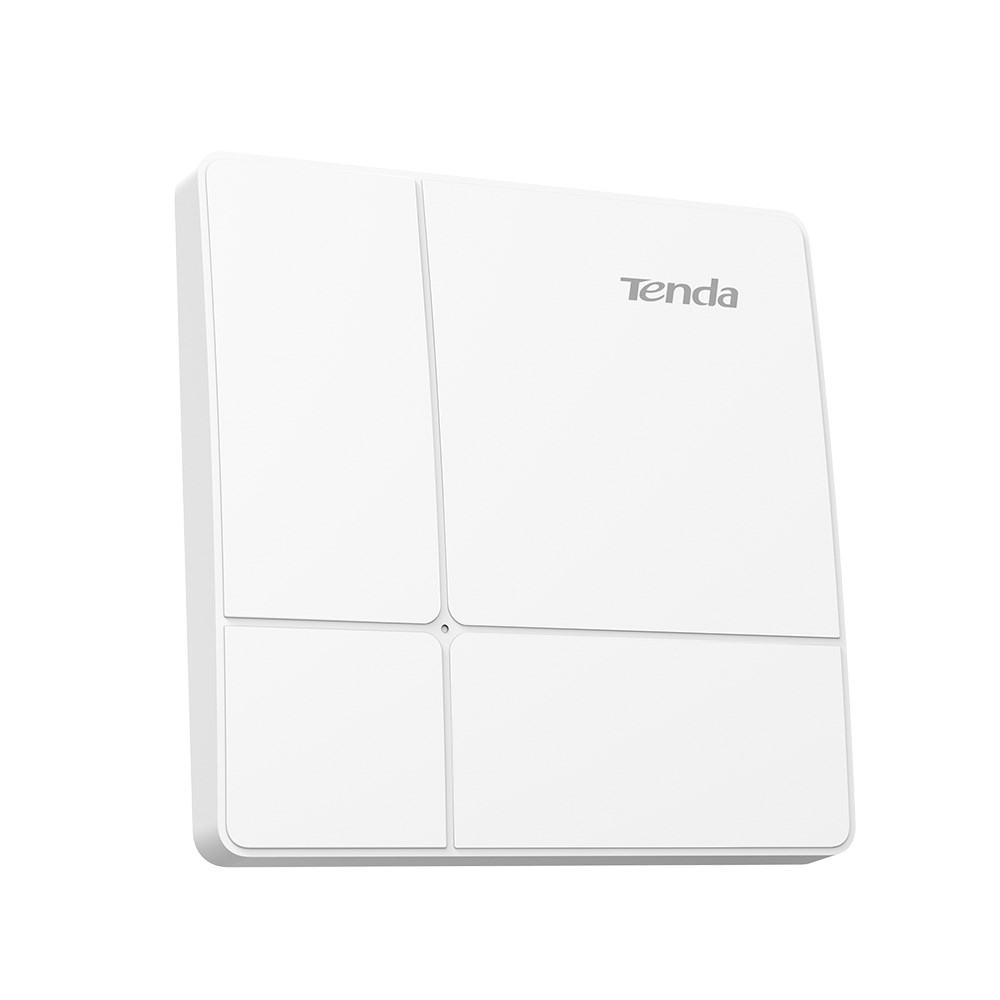

Tenda i23 is a dual-band Gigabit ceiling AP that complies with the IEEE 802.11ac Wave 2 standard,with a concurrent data rate of up to 1167 Mbps.Users can manage the device locally or remotely through the Tenda CloudFi APP, device web,Tenda CloudFi platform,etc,and can also share and host the network to others for collaborative management, thus achieving simpler, easier to use,safer and more convenient enterprise network operation and maintenance.
Datasheet
You can click here to export the current parameters (.docx)
Modeli23
CategoryCeiling
Dimension178 × 178 × 38mm
InterfaceOne 10/100/1000 Mbps Ethernet Port (PoE)
Button1 x RESET
LED Indicator1 x SYS
Maximum Power Consumption13.5W
Power Supply802.3af/at & DC: 12V 1A
Max. Number of Clients256
Recommended Clients38
Antenna2.4GHz: 2 x 4dBi
5GHz: 2 x 4dBi
2.4GHz maximum power23+/-1.5dBm
5GHz maximum power23+/-1.5dBm
Reception Sensitivity802.11b -93 dBm
2.4 GHz 802.11n (MCS7) -73dBm
5 GHz 802.11a -93 dBm
5 GHz 802.11n (MCS7) -74 dBm
Frequency Range2.4GHz&5GHz
Standard&Protocol802.11a/b/g/n/ac(wave2)
Maximum wireless speed2.4GHz: 300Mbps
5GHz: 867Mbps
Bandwidth20MHz/40MHz/80MHz
Operating ModeAP/Client AP
Max. No. of SSID2.4GHz: 8
5GHz: 4
Hide SSIDSupport
OFDMASupport
BeamformingSupport
Fast roaming(802.11k/v/r)Support
WEPSupport
WPA-PSKSupport
WPA2-PSKSupport
WPASupport
WPA2Support
WPA3-ASESupport
Access controlSupport
Adjustable power transmitSupport
Automatic channelSupport
AP isolationSupport
Connected clients controlSupport
RSSI ThresholdSupport
Weak signal terminal eliminationSupport
Prioritize 5 GHzSupport
VLAN tagging for SSIDSupport
LED controlSupport
MU-MIMOSupport
Diagnostics toolSupport
Reboot at specified intervalSupport
Schedule RebootSupport
Device managementM3 or Tenda Router with AP Controller feature
System LogsSupport
Firmware upgradeSupport
RebootSupport
ResetSupport
Backup configurationSupport
Restore configurationSupport
Default login IP192.168.0.254
Default Login Usernameadmin
Default Login Passwordadmin
Operation Temperature-10℃ ~ 40℃
Operating humidity10%~90% non-condensing
Storage temperature-30℃ ~ 70℃
Storage humidity10%~90% non-condensing
