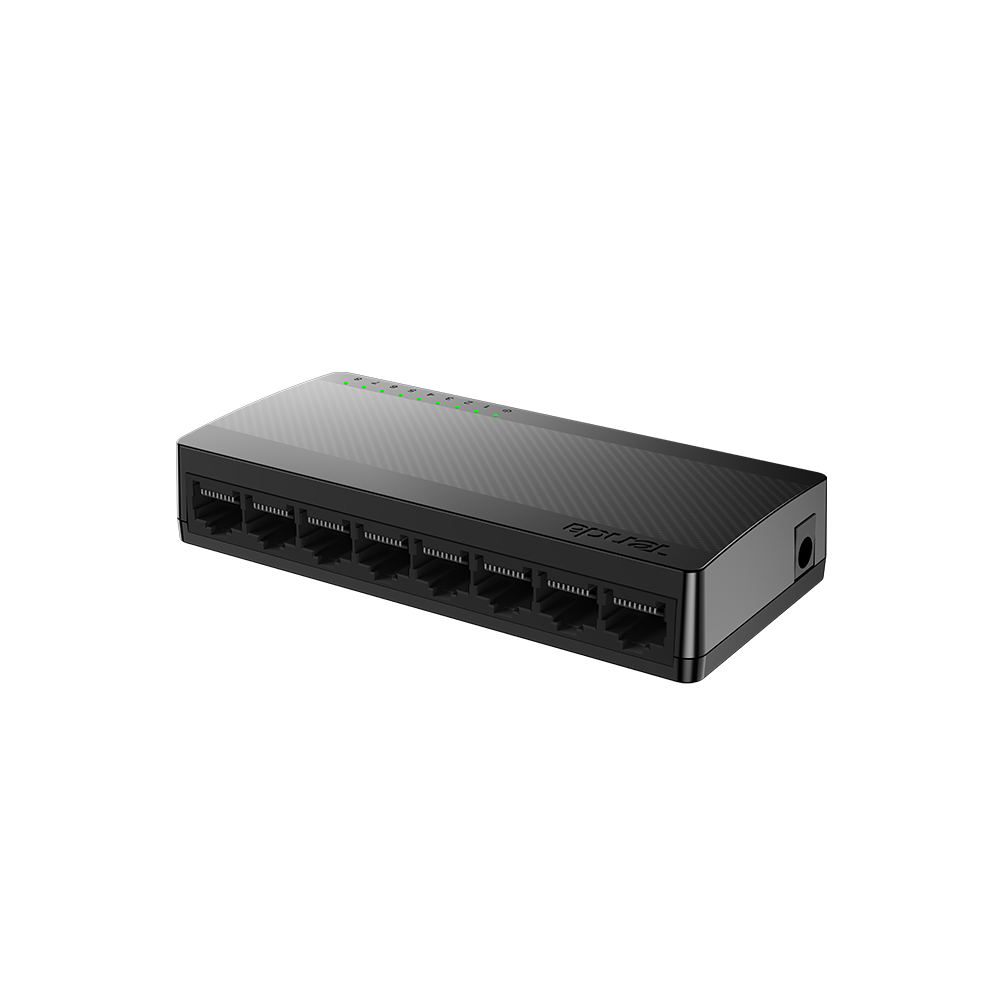

SG108 v4.0 8-Port Gigabit Ethernet Switch

8-Port Gigabit Ethernet Switch

SG108, designed by Tenda, are Ethernet switches with all gigabit ports.With high performance, fancy design and easy to maintain feature, SG108 are especially fit for scenarios requiring fast transmission, such as schools,families, SMBs and small-scale surveillance. The switches provide several Ethernet ports for downlink extension, and can also connect to uplink network devices. Compared with 100M switches, SG108 have a transmission speed 10 times faster, capable of transmitting large files, thus solving the video lag and video loss problems for HD surveillance. Besides, SG108 support both desktop installation and wall mounting, can be played once plugged, are easy to use without configuration. The switches are ideal choices for you to improve network performance.
Datasheet
You can click here to export the current parameters (.docx)
Network standardsIEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
LED Indicator1 * Power
8 * Link/Act
Interfaces8*10/100/1000 Base-T Ethernet ports(Auto MDI/MDIX)
Transmission mediaRecommended: CAT5/5e UTP or better
Dimension124mm*59mm*23mm
MaterialPlastic
Level of protectionESD:
Air discharge: ±8kV
Contact discharge: ±6kV
Forwarding modeStore-and-forward
Switch capacity16Gbps
Packet forwarding rate12.00Mpps
Buffer4Mb
MAC address table8K
PowerInput: 100-240V AC 50/60Hz
Output: 5V 0.6A (External power adapter)
Power consumptionMax:<3W
MountingDesktop mounting: support
Wall mounting: support
Rack mounting:non-support
EnvironmentOperating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
CertificationCE, FCC, RoHS
ProtocolsCDMA/CD
MAC address learningAuto-Learning and Auto-Aging
Funtionsplug-and-play
