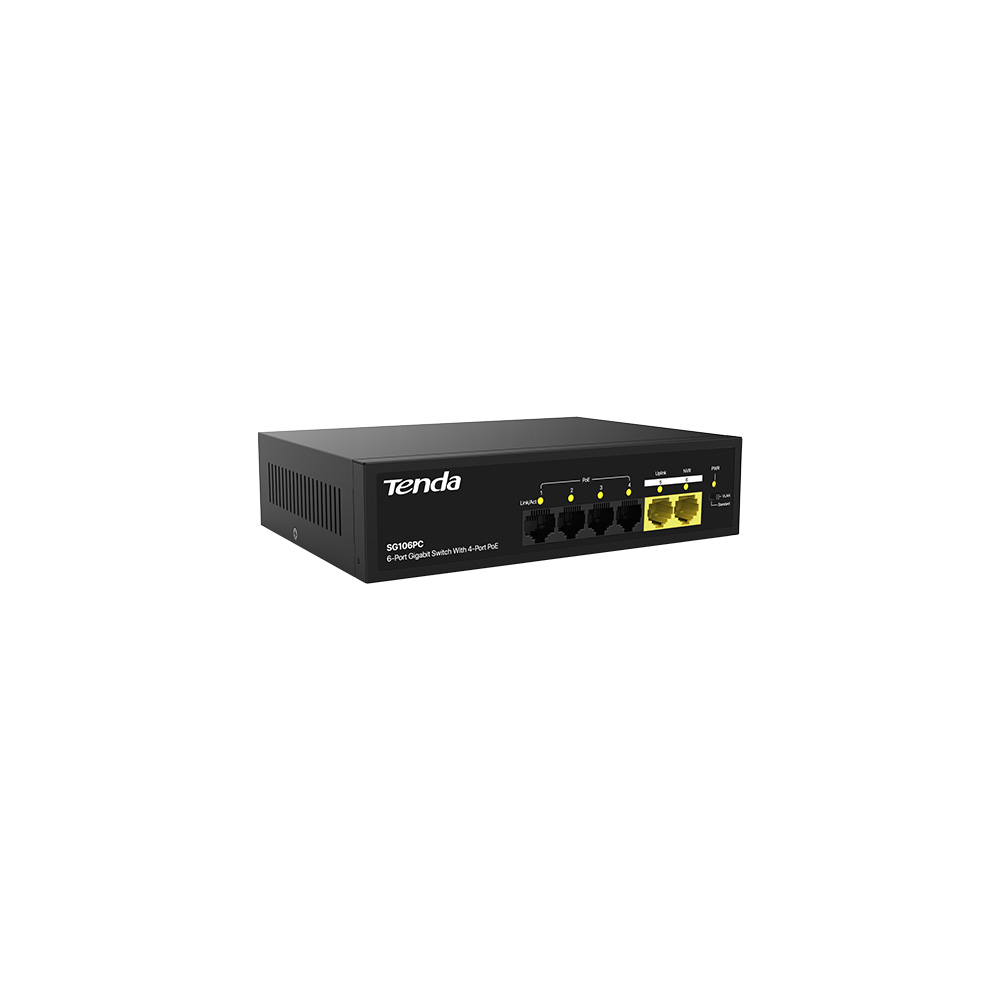

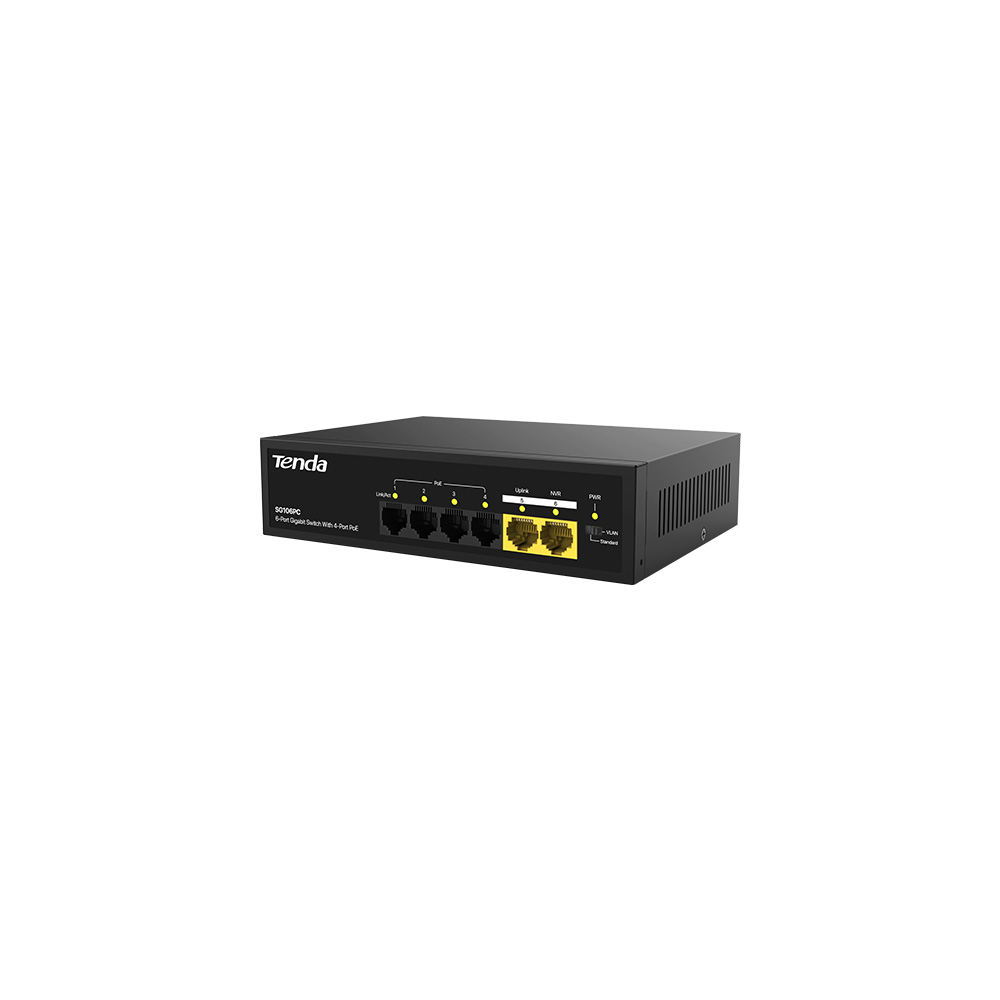

SG106PC  6-Port Gigabit Lite PoE Switch with 4-Port PoE

6-Port Gigabit Lite PoE Switch with 4-Port PoE

SG106PC is a gigabit dual-port uplink unmanaged PoE switch independently designed by Tenda. Compatible with AF/AT standard PoE power supply mode, intelligent identification of powered devicesprepare. The maximum output of a single port is 30W, and the whole machine is 55W. Supports functions such as one-key VLAN, QoS priority, etc., and is designed for outdoor, indoor and other small-scale monitoring networking needs.It is an ideal choice for small businesses, convenience stores, and street restaurants for video surveillance networking.
Datasheet
You can click here to export the current parameters (.docx)
Network standardsIEEE802.3, IEEE802.3u, IEEE802.3x,IEEE802.3ab
LED Indicator6* Link/Act LED indicators
1 * Power LED indicator
Interfaces4*10/100/1000 Base-TX Ethernet Ports(Data/Power)
2*10/100/1000 Base-TX Ethernet Port(Data)
Transmission mediaRecommended: CAT5/5e UTP or better
Dimension175*127*43mm(L*W*H)
Level of protection4KV
Forwarding modeStore-and-forward
Switch capacity12G
Packet forwarding rate8.9 Mpps
MAC address table2K
PoE budgetCompatible with IEEE802.3af/at
Whole device: 55W
Input voltage190-240V AC 50/60Hz
MountingDesktop mounting: support
Wall mounting: support
Rack mounting: Not support
EnvironmentOperating temperature: 0°C - 40°C
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%), non-condensing
Storage humidity: (5% - 90%), non-condensing
