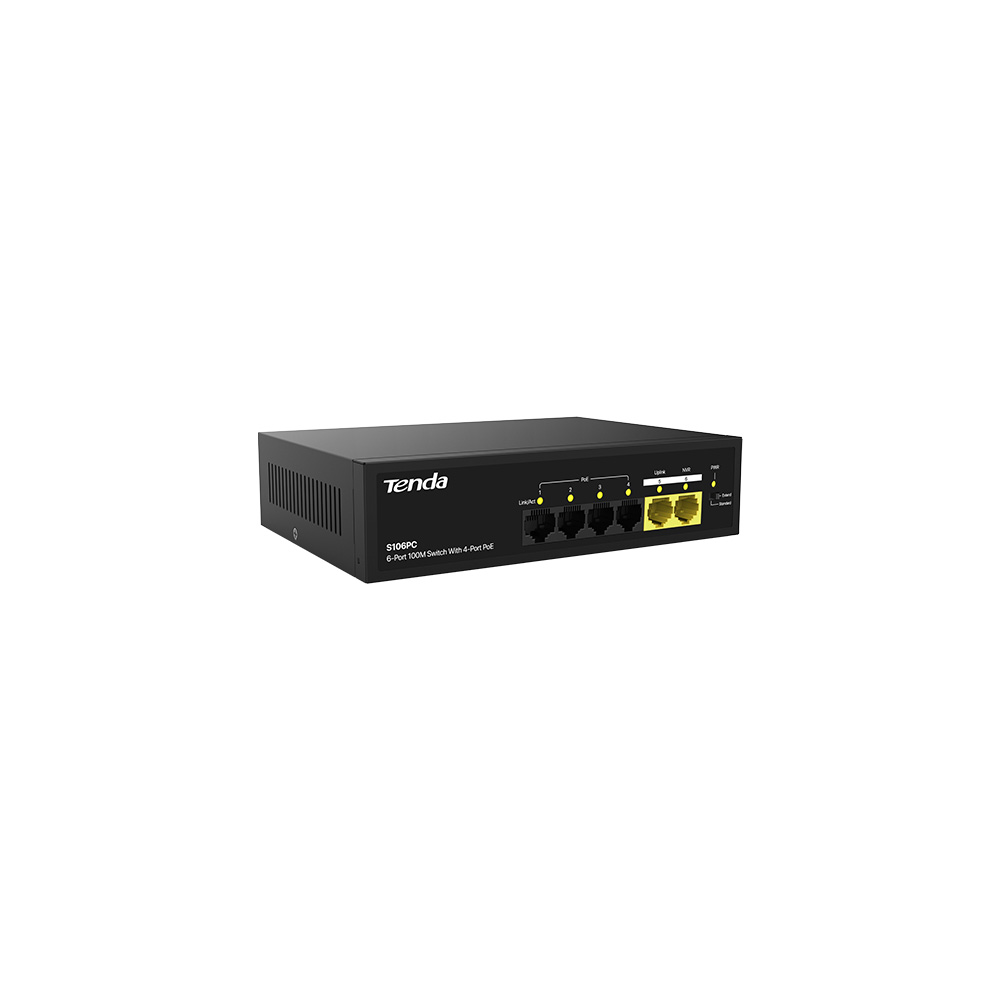

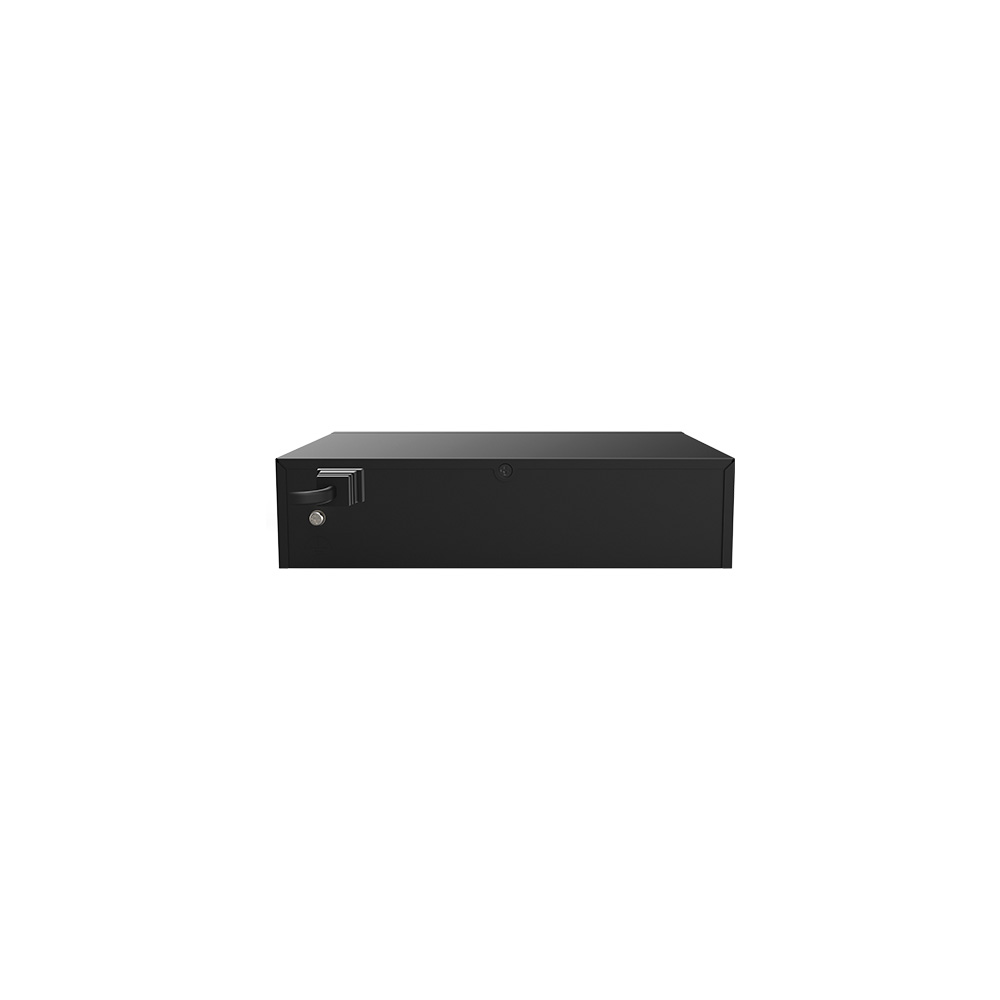

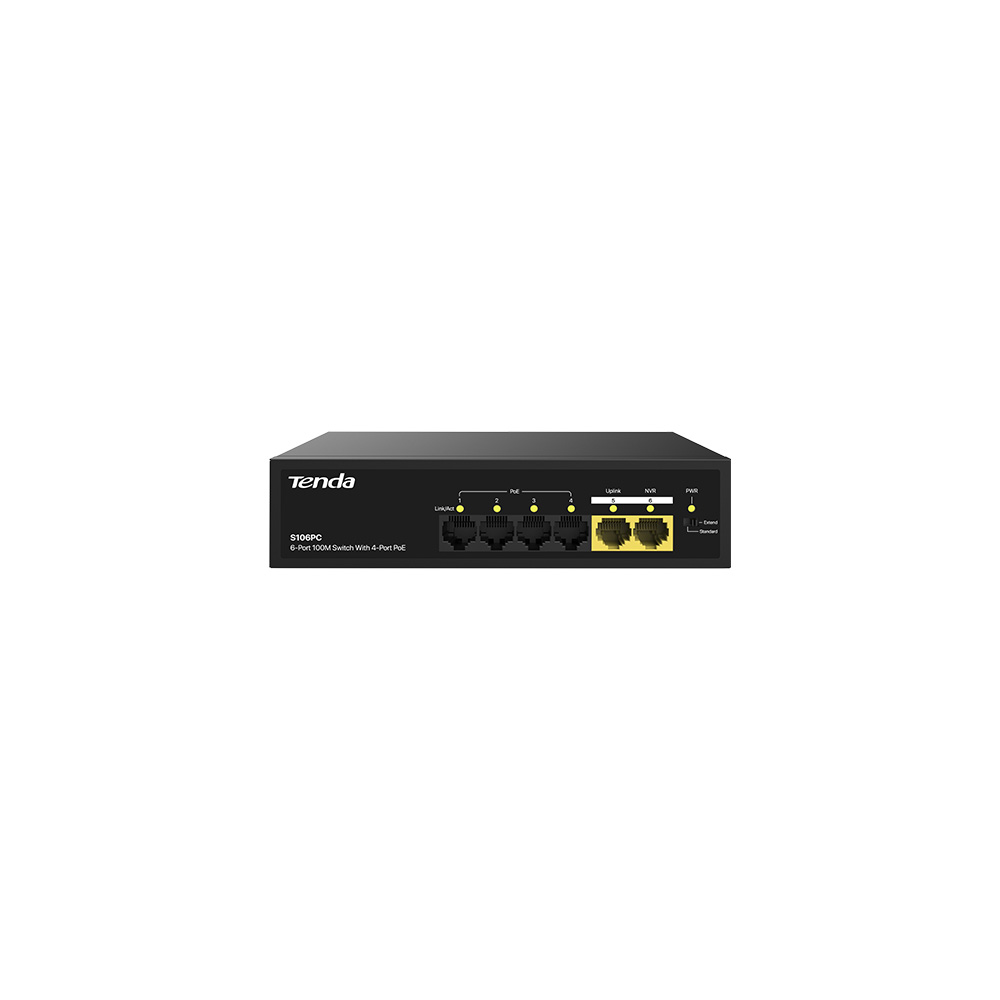

S106PC  6-Port 100M Lite PoE Switch with 4-Port PoE

6-Port 100M Lite PoE Switch with 4-Port PoE

S106PC is a 100M dual-port uplink unmanaged PoE switch independently designed by Tenda. Compatible with AF/AT standard PoE power supply mode, intelligently identify powered devices. The maximum output of a single port is 30W,and that of the whole machine is 55W. Support 250m network extension, QoS priority and other functions, designed for outdoor, indoor, etc.Small-scale monitoring network needs to be built, it is an ideal choice for small enterprises,convenience stores, and street restaurants video surveillance network.
Datasheet
You can click here to export the current parameters (.docx)
Network standardsIEEE802.3, IEEE802.3u, IEEE802.3x
LED Indicator6* Link/Act LED indicators
1 * Power LED indicator
Interfaces4*10/100 Base-TX Ethernet Ports(Data/Power)
2*10/100 Base-TX Ethernet Port(Data)
Transmission mediaRecommended: CAT5/5e UTP or better
Dimension175*127*43mm(L*W*H)
Level of protection4KV
Forwarding modeStore-and-forward
Switch capacity1.2G
Packet forwarding rate0.89 Mpps
MAC address table1K
PoE budgetCompatible with IEEE802.3af/at
Whole device: 55W
Input voltage190-240V AC 50/60Hz
MountingDesktop mounting: support
Wall mounting: support
Rack mounting: Not support
EnvironmentOperating temperature: 0°C - 40°C
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%), non-condensing
Storage humidity: (5% - 90%), non-condensing
