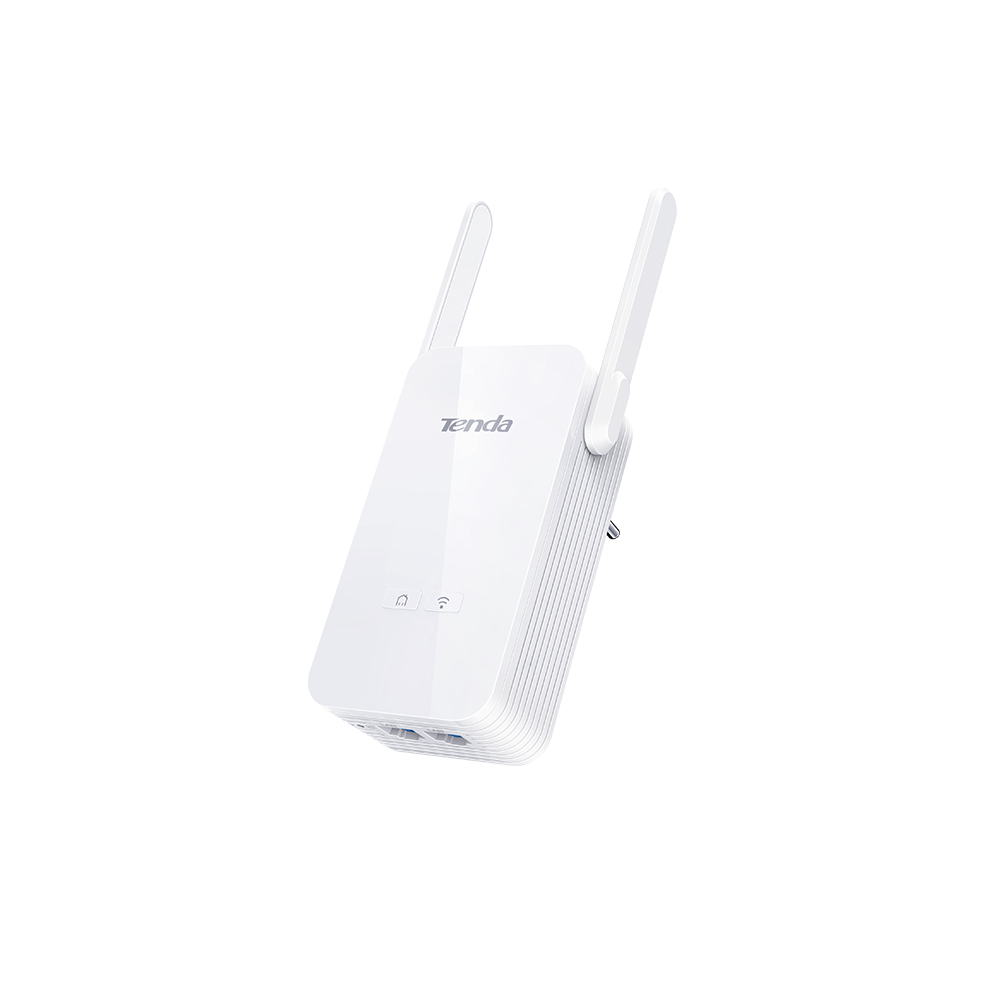

PH5  AV1000 Wi-Fi Powerline Extender Kit

AV1000 Wi-Fi Powerline Extender Kit

PH5 Double 1000Mbps provides faster network for your entertainment,With the new generation Broadcom Powerline chipset and Homeplug AV2 technology, the transmission speed of PH5 can be up to 1000Mbps. And it’s Gigabit Ports is 10 times better than 100M ports.which is the real Gigabit network for your entertainment.
Explore
PH5PH5PH5PH5
Documents
Safety and Regulatory Information Safety and Regulatory Information
PH5 Datasheet PH5 Datasheet
Symbols on Products and Materials Symbols on Products and Materials
Datasheet
You can click here to export the current parameters (.docx)
InterfacesWi-Fi Powerline Extender:
2 * 10/100/1000 Mbps RJ45
Powerline Adapter:
1 * 10/100/1000 Mbps RJ45
Antenna Type2 * External 3dBi omni-directional antenna
ButtonWi-Fi Powerline Extender:
1 * Pair, 1 * Wi-Fi Clone/switch, 1 * Reset
Powerline Adapter:
1 * Pair/Reset
LED IndicatorWi-Fi Powerline Extender:
1 * Powerline, 1 * Wi-Fi
Powerline Adapter:
1 * Power, 1 * Powerline, 1 * Ethernet
Power InputAC100～240V 50/60Hz 0.1A
Power ConsumptionWi-Fi Powerline Extender: 8.9W(Maximum)
Powerline Adapter: 3.2W(Maximum)
DimensionWi-Fi Powerline Extender: 120mm*63mm*42mm(L x W x H)
Powerline Adapter: 82mm*60mm*32mm(L x W x H)
Wireless StandardHomeplugAV2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
IEEE802.11b/g/n
FrequencyPowerline: 2-86MHz
Wireless: 2.4GHz
Data RatePoweline: 1000Mbps
Wireless: 2.4GHz Up to 300Mbps
CertificationCE, FCC、RoHS
Plug TypeUS、EU、UK
Package Contents1 * AV1000 Gigabit Powerline Adapter
1 * AV1000 2-Port Gigabit Wi-Fi Powerline Extender
1 * Quick Installation Guide
1 * Cat5e Ethernet Cable
EnvironmentOperating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
Storage Temperature: -40°F ~ 158°F (-40°C ~ 70°C )
Operating Humidity: 10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing
Related ProductsPH3，PH6，PH10
