New

OAP1200  802.11AC Indoor/Outdoor Wi-Fi Access Point

802.11AC Indoor/Outdoor Wi-Fi Access Point

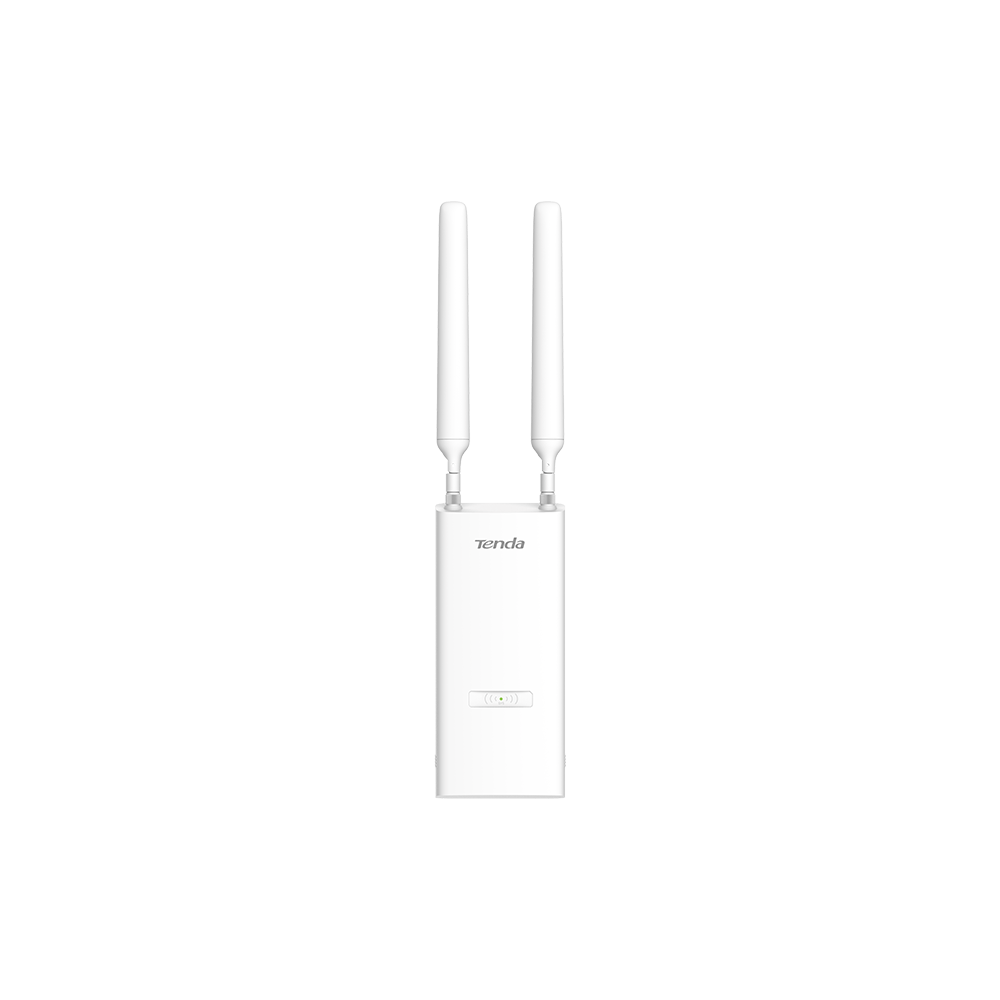

The gigabit dual-band indoor/outdoor access point OAP1200 offers a concurrent data rate as high as 1167 Mbps. Equipped with 2 omni-directional high-gain antennas, OAP1200 provides a maximum coverage radius of 200 meters. OAP1200 can be installed either on the wall or around a pole. OAP1200 can meet different requirements by connecting antennas of different specifications to the standard RP-SMA connectors. With the IP65 enclosure, OAP1200 is designed for wireless coverage in factories, warehouses and other harsh outdoor environments.
Datasheet
You can click here to export the current parameters (.docx)
ModelOAP1200
CategoryOutdoor AP
Dimension194.7*83*42.1 mm
InterfaceOne 10/100/1000 Mbps Ethernet Port (PoE)
Button1*Reset
LED indicator1 x SYS
Maximum Power Consumption11.5w
Power Supply802.3af & 24V 0.5A Passive PoE
Max. Number of Clients256
Recommended Clients38
Antenna2.4GHz: 2 x 4dBi
5GHz: 2 x 4dBi
2.4GHz maximum power23+/-1.5dBm
5GHz maximum power23+/-1.5dBm
Reception Sensitivity802.11b -93 dBm
2.4 GHz 802.11n (MCS7) -73dBm
5 GHz 802.11a -93 dBm
5 GHz 802.11n (MCS7) -74 dBm
Frequency Range2.4GHz&5GHz
Standard&Protocol802.11a/b/g/n/ac(wave2)
Maximum wireless speed2.4GHz: 300Mbps
5GHz: 867Mbps
Bandwidth20MHz/40MHz/80MHz
Operating ModeAP/Client+AP
Max. No. of SSID2.4GHz: 8
5GHz: 4
Hide SSIDSupported
OFDMASupported
BeamformingSupported
Fast roaming(802.11k/v/r)Supported
WEPSupported
WPA-PSKSupported
WPA2-PSKSupported
WPASupported
WPA2Supported
Access controlSupported
Adjustable power transmitSupported
Automatic channelSupported
AP isolationSupported
Guest networkSupported
Connected clients controlSupported
RSSI ThresholdSupported
Weak signal terminal eliminationSupported
Prioritize 5 GHzSupported
VLAN tagging for SSIDSupported
LED controlSupported
MU-MIMOSupported
Diagnostics toolSupported
Reboot at specified intervalSupported
Scheduled rebootSupported
Device managementWeb management
Router management
System logsSupported
Firmware upgradeSupported
RebootSupported
ResetSupported
Backup configurationSupported
Restore configurationSupported
Default IP192.168.0.254
Default usernameadmin
Default passwordadmin
Operation Temperature-30℃ ~ 50℃
Operating Humidity10%~90% non-condensing
Storage Temperature-30℃ ~ 70℃
Storage Humidity10%~90% non-condensing
