Whole-Home Wi-Fi > WiFi 5 Mesh >  MW5G  3-Pack

MW5G  3-Pack Videos（1）
MW5G  3-Pack Download（7）
MW5G  3-Pack FAQs（43）
End of Life

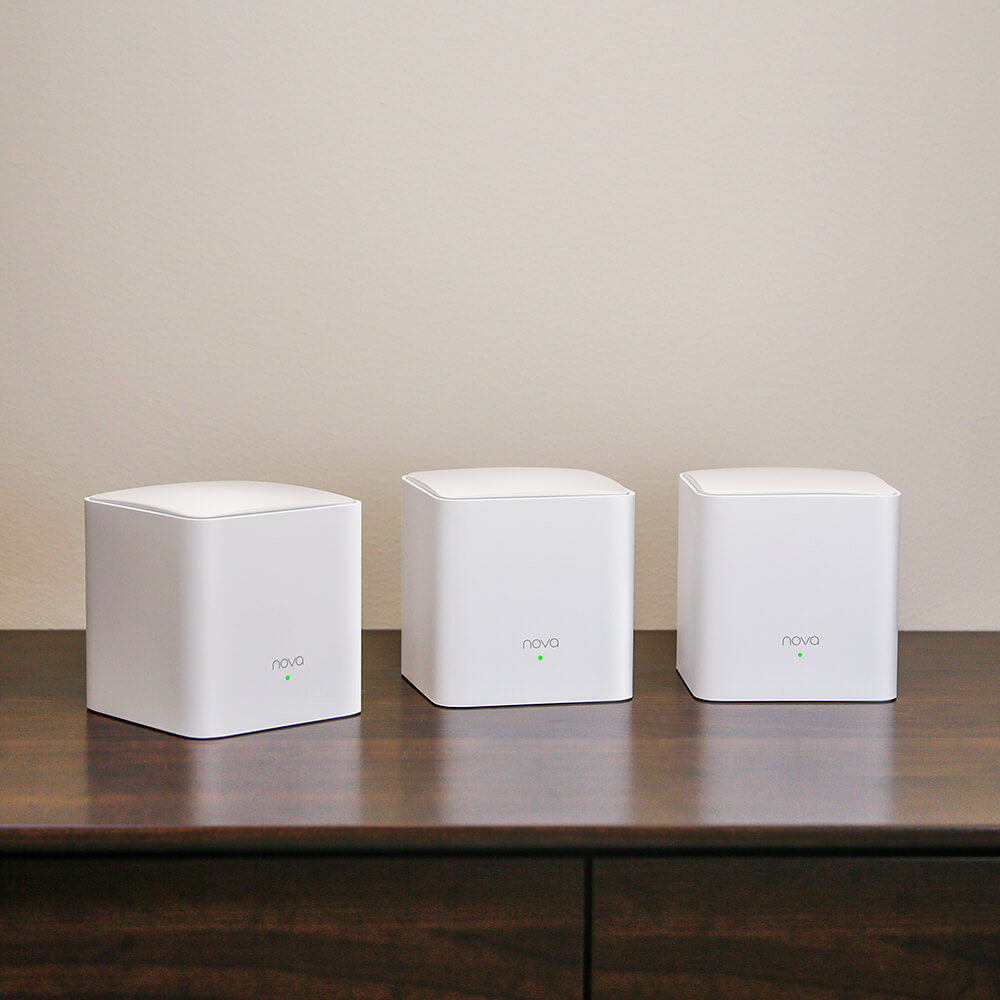

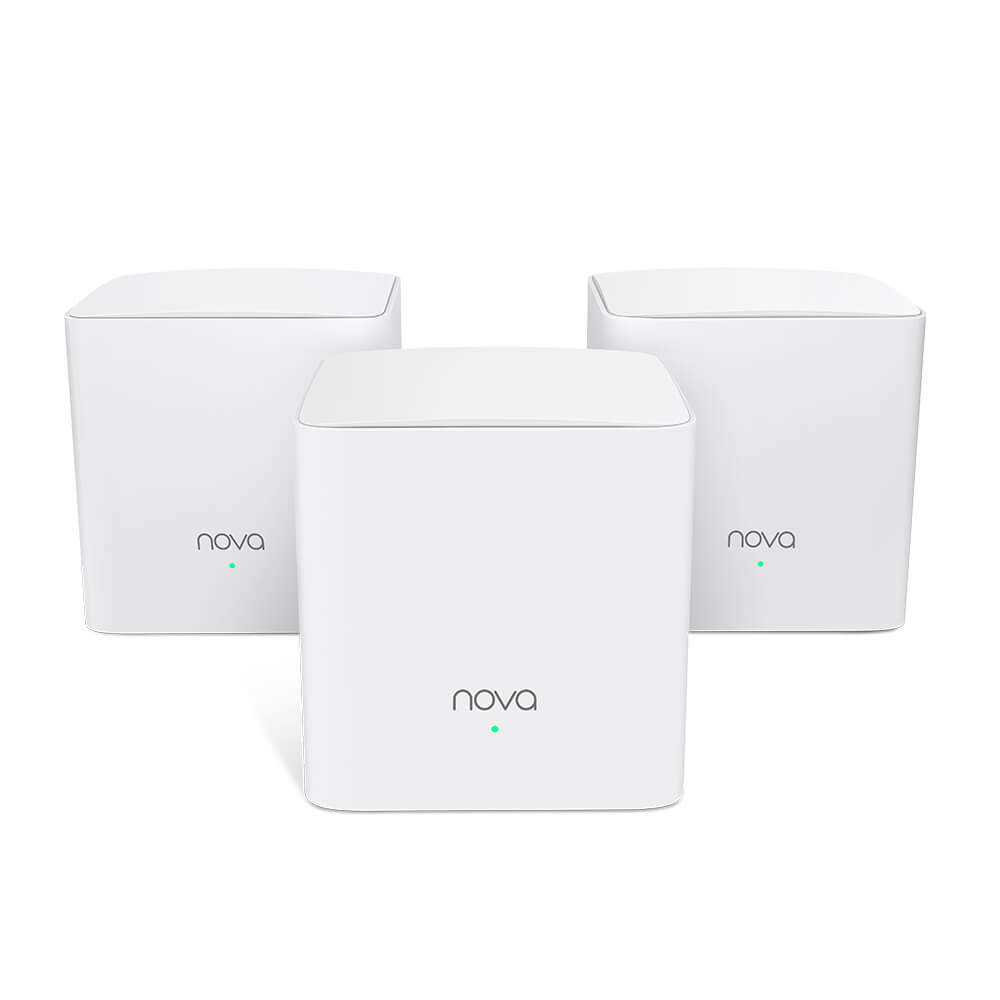

MW5G 3-Pack AC1200 Whole-home Mesh WiFi System

AC1200 Whole-home Mesh WiFi System

Explore
MW5GMW5GMW5GMW5G
Documents
MW Series Safety and Regulatory InformationMW Series Safety and Regulatory Information
MW Series Whole Home Mesh WiFi System(2 or 3 pack) Quick Installation Guide(multi-language)MW Series Whole Home Mesh WiFi System(2 or 3 pack) Quick Installation Guide(multi-language)
MW5G Installation GuideMW5G Installation Guide
MW5G DatasheetMW5G Datasheet
Symbols on Products and MaterialsSymbols on Products and Materials
Datasheet
Standard&ProtocolIEEE 802.3, IEEE 802.3u, IEEE 802.4ab
Ethernet Interface2 x 10/100/1000Mbps RJ45 ports per node
Antenna2 x Internal antenna
Button1 x Reset Button
PowerInput: 100-240V—50/60Hz, 0.6A
Output: 12V1A
Dimension91 x 91 x 93mm (3.58 x 3.58 x 3.66 in.)
LED Indicator1 x Tri-color LED
Indicator(Green,Yellow,Red)
Wireless StandardIEEE802.11a/b/g/n/ac (WiFi 5 wave 2)
Wireless roamingComply with IEEE802.11k/v/r
Mesh network StandardIEEE802.11s
Rate2.4GHz: 300Mbps
5GHz: 867Mbps
Frequency2.4~2.4835GHz
5.15~5.25GHz
5.725~5.85GHz
Transmission PowerCE:
<20dBm(2.4G)
<23dBm(5G)
Basic FeaturesSSID Broadcast
Beam Forming
MU-MIMO
AP Steering
Band Steering
Wireless SecurityWPA-PSK/WPA2-PSK(default)
Operating ModeRouter Mode,Bridge Mode
Internet Connection TypePPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
DHCP ServerDHCP Server, DHCP Client List
Virtual ServerPort Forwarding, UPnP
Parental ControlClient Filter
FirewallForbid TCP/UDP flood attack
VPNPPTP/L2TP/IPsec pass through
DNSSupport manually setting DNS server
Special FeaturesSmart QoS (Gaming, Video & Audio, Download)
OthersAuto-sensing internet connection
Support App management and Remote management
Guest Network
Firmware upgrade online
Operation Temperature0 ~ 40 ℃
Storage Temperature-40 ~ 70 ℃
Operating Humidity10%~90% RH non-condensing
Storage Humidity5%~90% RH non-condensing
APP installationAvailable in iOS 8.0 or later, Android 4.0 or later
CertificationCE, FCC, RoHS,EAC,IC
Package ContentsMesh5 x 3, Power adapter x 3, QIG x 1, RJ45 Gigabit Ethernet cable x 1
Downloads
MW5G 3-Pack CEMW5G 3-Pack CE
MW5G HD ImageMW5G HD Image
FAQs
[Router/Mesh-2.1] What should I do if my router's Wi-Fi is slow[Router/Mesh-2.1] What should I do if my router's Wi-Fi is slow
[Mesh-MX-1.3] How to set AP mode[Mesh-MX-1.3] How to set AP mode
[Mesh-MX-1.3] How to change the SSID and wireless password[Mesh-MX-1.3] How to change the SSID and wireless password
[ALL-4] Why Tenda HTTPS Web Interface Is Detected As Unsecure by Some Web Browsers[ALL-4] Why Tenda HTTPS Web Interface Is Detected As Unsecure by Some Web Browsers
[Router/Gateways/Mesh-4.3] How to use Iperf to test the speed[Router/Gateways/Mesh-4.3] How to use Iperf to test the speed
[ALL-2.2] Why Do I Fail to Access tendawifi.com[ALL-2.2] Why Do I Fail to Access tendawifi.com
[ALL-4] How to find your Tenda router's IP address[ALL-4] How to find your Tenda router's IP address
[Router/Mesh/Gateway-2.5] Network Speed Q&A[Router/Mesh/Gateway-2.5] Network Speed Q&A
[MG-3] Gate How to set VPN[MG-3] Gate How to set VPN
[Router/Mesh-3.3] How to set Guest WiFi[Router/Mesh-3.3] How to set Guest WiFi
[Router/Mesh-4] The Questions Before Buying.[Router/Mesh-4] The Questions Before Buying.
[Router/Mesh-2.3] What happened if my 2.4G or 5G WiFi(SSID) can't not find[Router/Mesh-2.3] What happened if my 2.4G or 5G WiFi(SSID) can't not find
[Router-2] What should I do if the router get bricked[Router-2] What should I do if the router get bricked
[Router/Mesh-2.2] What should I do if the cloud account doesn't show up & keep buffering[Router/Mesh-2.2] What should I do if the cloud account doesn't show up & keep buffering
[Router/Mesh-3.1] How to Clone MAC Address on My Tenda Router[Router/Mesh-3.1] How to Clone MAC Address on My Tenda Router
[ALL-1.4] How to reset Tenda device to factory default[ALL-1.4] How to reset Tenda device to factory default
How to set Fast roaming？How to set Fast roaming？
MW6-How to modify DNS servers？MW6-How to modify DNS servers？
MW6-How to enable QOS functionality to improve the smoothness of web pages and games？MW6-How to enable QOS functionality to improve the smoothness of web pages and games？
How to enable mobile phones to discover and install smart home devices that only support 2.4GHz？How to enable mobile phones to discover and install smart home devices that only support 2.4GHz？
[Mesh-3.3] How does the parental control function manage the online time of the terminal？[Mesh-3.3] How does the parental control function manage the online time of the terminal？
[Router-2.3] What should I do if I cannot access the Internet after my router is set up (New interface)[Router-2.3] What should I do if I cannot access the Internet after my router is set up (New interface)
[ALL-4] Wireshark capture Router interface packet operation guide[ALL-4] Wireshark capture Router interface packet operation guide
[Mesh-1.4] How to reset when the reset button fails?[Mesh-1.4] How to reset when the reset button fails?
[Mesh-1.5] How to connect Tenda Mesh with Amazon Alexa[Mesh-1.5] How to connect Tenda Mesh with Amazon Alexa
[Mesh-1.2] How to login to the Tenda Router's web management page when HTTPS is enabled？[Mesh-1.2] How to login to the Tenda Router's web management page when HTTPS is enabled？
[ALL-1.7] How to find the hardware version on a Tenda device[ALL-1.7] How to find the hardware version on a Tenda device
[Router/Mesh-2.5] My speed is slow when I connect to router WiFi, what should I do[Router/Mesh-2.5] My speed is slow when I connect to router WiFi, what should I do
[Mesh-MW-3] How to check WAN IP[Mesh-MW-3] How to check WAN IP
[Mesh-MW-3.1] How to change LAN IP address[Mesh-MW-3.1] How to change LAN IP address
[Mesh-MW-2] What Should I Do When Can't Detect WiFi Signal.[Mesh-MW-2] What Should I Do When Can't Detect WiFi Signal.
[Mesh-MW-1] What should I do——Connection type is PPPoE, dynamic IP is recommended by APP.[Mesh-MW-1] What should I do——Connection type is PPPoE, dynamic IP is recommended by APP.
[Mesh-MW-2.4] What should I do——Device cannot connect with 5G signal.[Mesh-MW-2.4] What should I do——Device cannot connect with 5G signal.
[Mesh-MW-1] What should I do——If cannot detect connection type by Tenda App.[Mesh-MW-1] What should I do——If cannot detect connection type by Tenda App.
[Mesh-MW-2] What should I do——My smart phone could not connect to 2.4G-enabled devices, such as a home security camera.[Mesh-MW-2] What should I do——My smart phone could not connect to 2.4G-enabled devices, such as a home security camera.
[Mesh-MW-3] What should I do——Network delay is high.[Mesh-MW-3] What should I do——Network delay is high.
[Mesh-MW-1.1] How to add new Mesh into existing mesh network system[Mesh-MW-1.1] How to add new Mesh into existing mesh network system
[Mesh-MW-3] How to check connection type of the devices[Mesh-MW-3] How to check connection type of the devices
[Mesh-MW-3] How to check wired connection or wireless connection among nodes in network[Mesh-MW-3] How to check wired connection or wireless connection among nodes in network
[Mesh-MW-1] How to remove one of three Mesh nodes[Mesh-MW-1] How to remove one of three Mesh nodes
[Mesh-MW-3] How to set bridge mode[Mesh-MW-3] How to set bridge mode
[Mesh-MW-3.3] How to set up Parental Control[Mesh-MW-3.3] How to set up Parental Control
[Mesh-MW-3] How to set up Port Forwarding[Mesh-MW-3] How to set up Port Forwarding
