IEEE Standards | IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z |
PON Standards | GPON: ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4 EPON: IEEE802.3ah |

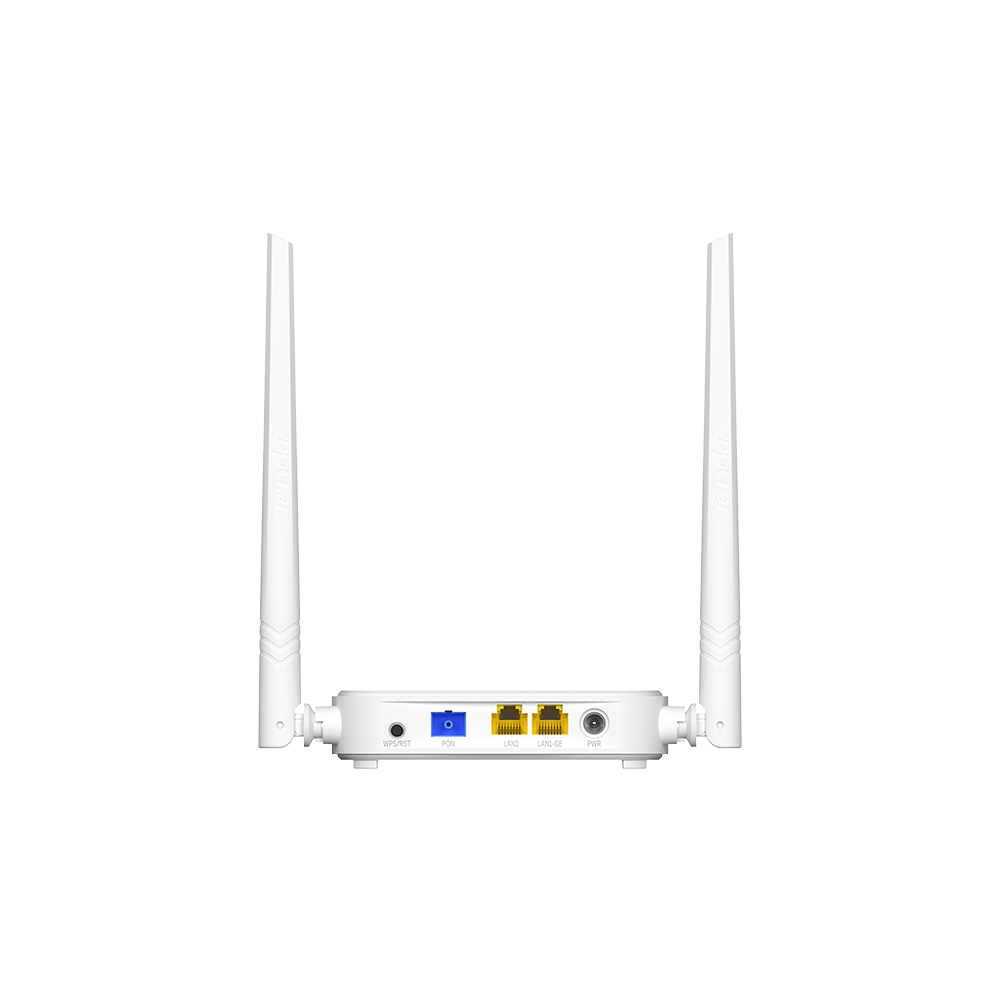

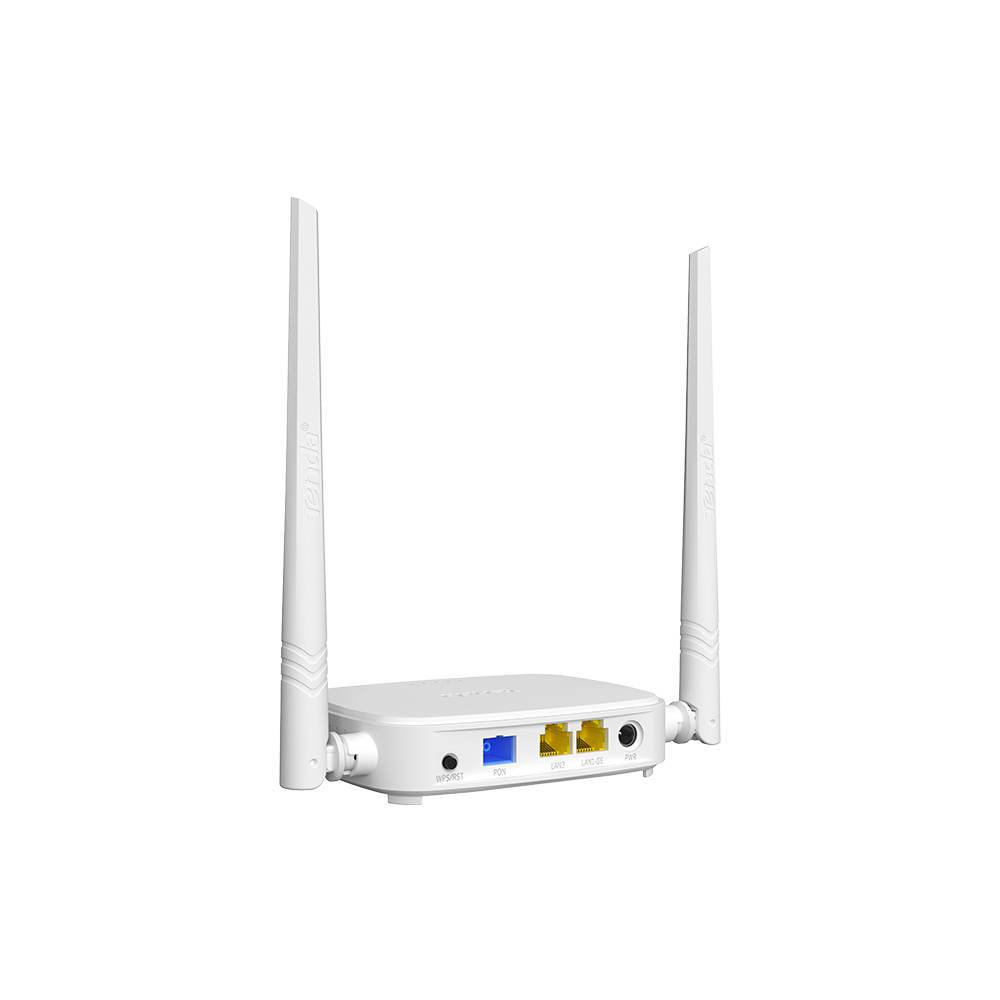

Interfaces | 1*SC/APC (or UPC) Port, 1*1000Mbps RJ45 LAN Port, 1*100Mbps RJ45 LAN Port, 1*DC Port |
LED Indicator | 1*WPS/RST Button |
Button | 1*WPS/RST Button |
Optical Mode | Class B+ |
Optical Wavelength | Transmit at 1310nm, Receive at 1490nm |
Transmission Distance | 20km Max |
Bandwidth | Upstream 1.25Gbps Max, Downstream 2.5Gbps Max |
Dimension | 166.6*90.5*27mm (W * D * H) |
TX Power | 0.5~5dBm |
RX Power | -28~-8dBm |
External Power Supply | DC 9V /1A |
Power Consumption | ≤9w |
DHCP Server | PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection |
WAN Connection | PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection |
Business Type | TR069, Internet, IPTV |
Quality Of Service | Bandwidth Control |
IP Version | IPv4, IPv6 |
Services | DHCP, Dynamic DNS , IGMP Proxy UPnP |
VPN Pass-through | PPTP, L2TP, IPsec Pass-through |
Firewall | ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding, DMZ |
IPv6 | Radvd, DHCPv6, MLD Proxy, MLD Snooping |
Diagnostics | Ping, Ping6, Tracert, Tracert6 |
TR069 | ACS, Connection request |
Frequency | 2.4GHz |
Bandwidth | 20M/40M |
Channel Range | CH1-CH13 |

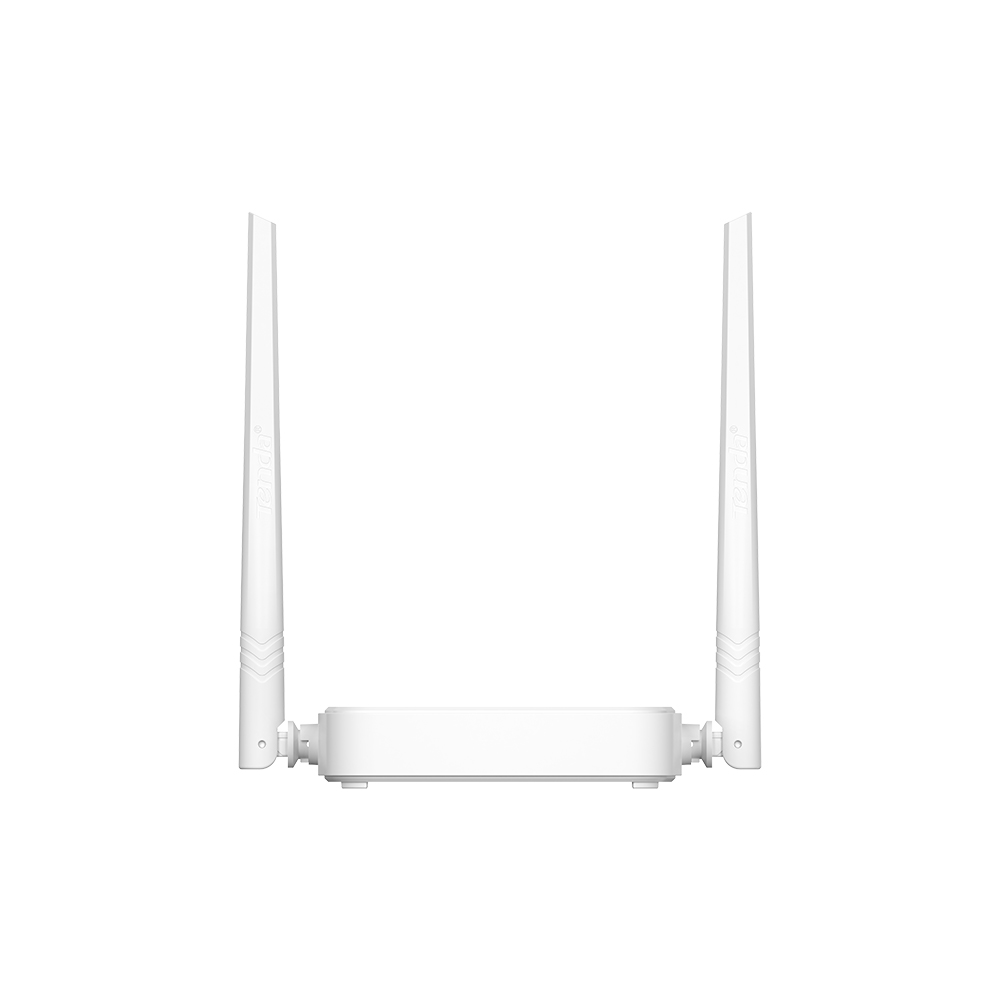

Antenna | 2 * 5 dBi Antenna |
Easy Client Setup | WPS/RST Button |
Speed | 11n 300M |
Transmission Power | <20 dBm(EIRP) |
Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering |
SSIDs | Main SSID ,4 Guest SSIDs |
Max Terminal Linked | 16 |
Operation Temperature | 0°c ~ 45°c |
Storage Temperature | -40°c ~ 70°c |
Operating Humidity | 10% ~ 90% (Non-condensing) |
Storage Humidity | 5% ~ 90% (Non-condensing) |
Package Contents | 1*HG3, 1* Power adapter, 1* User Manual, 1* RJ45 cable |
Certification | CE, FCC , RoHS |
