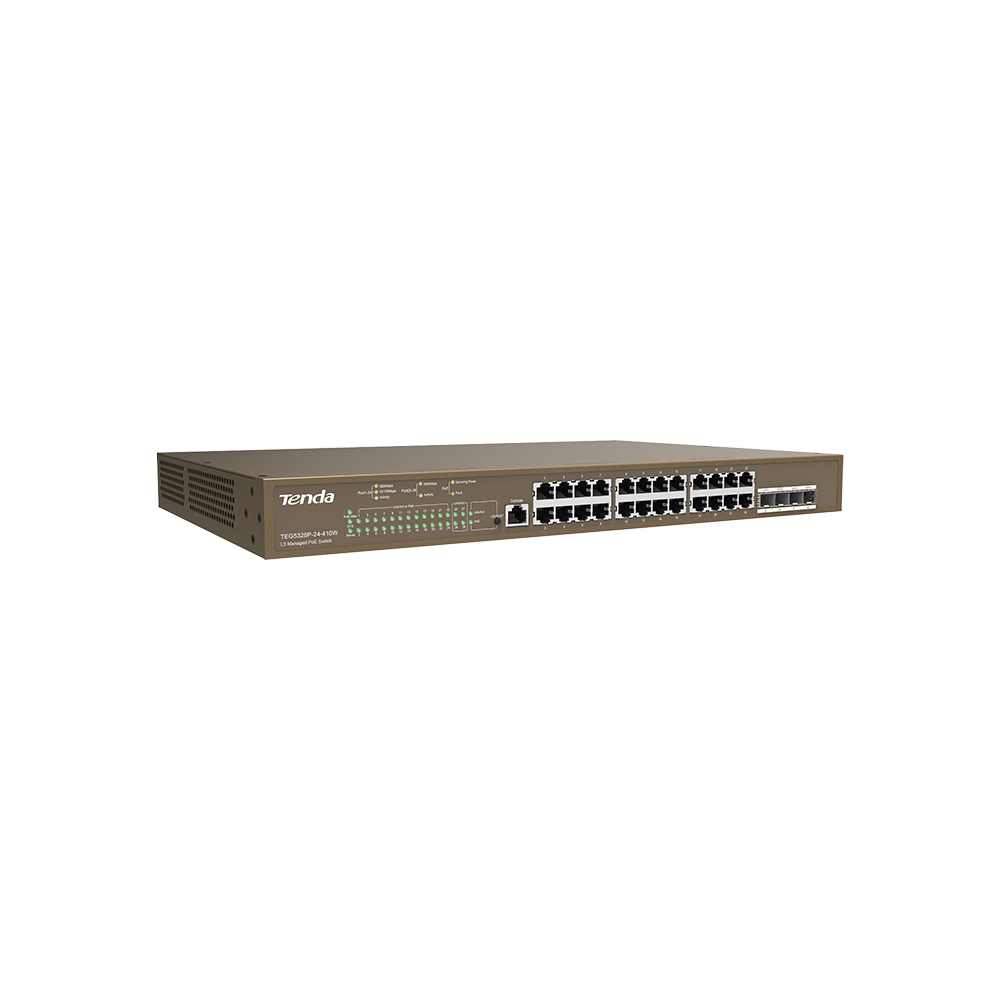

TEG5328P-24-410W  L3 Managed PoE Switch

L3 Managed PoE Switch

TEG5328P-24-410W is a Tenda Layer-3 managed PoE switch. To meet the demand of high-performance access, the switch provides 24 10/100/1000 Mbps Base-T Ethernet ports and 4 separate 1000 Mbps Base-X SFP ports, and a PoE power of up to 370 W.With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or access layer of such medium to large networks as enterprises and campuses.
Datasheet
You can click here to export the current parameters (.docx)
Network standardsIEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3z、 IEEE802.3x、 IEEE802.3af/at、IEEE802.1p、IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s
LED Indicator1*Link/Act or PoE LED indicator
1*Link/1*Link/Act mode converting LED indicator
1*PoE mode converting LED indicator
1*PoE Max LED indicator
1*Power LED indicator
1*SYS LED indicator
Interfaces24*10/100/1000 Base-T Ethernet ports
4*1000 Base-X SFP ports
1*Console port
Transmission mediaRecommended: CAT5/5e UTP or better
Fan quantity2
Level of protectionLightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding modeStore-and-forward
Switch capacity56Gbps
Packet forwarding rate41.70Mpps
Buffer12Mb
MAC address table16K
Jumbo frame10K
PoE power supply managementSupport
PoE budgetSingle port: AF: 15.4W, AT: 30W
Whole device: 370W
Input voltage100-240V AC 50/60Hz
Power consumptionFull load: <432W
Empty load: <23W
Dimension440.0mmx284.0mmx44.0mm
MountingDesktop mounting: support
Wall mounting: support
Rack mounting:non-support
Energy EfficientSupport
EnvironmentOperating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
CertificationFCC、CE、RoHS
L3 FeaturesSupports VLAN-based routing
Supports IPv4/IPv6 static routing
Supports static ARP
PoE power supply managementSupports port PoE configuration and power supply with priority
Supports PoE over-temperature protection
Supports PoE scheduled management
Supports intelligent management and PoE-powered device detection
(port status, power assignment and PoE-powered device status)
Security featuresARP receiving limit
Unknown MAC address discard
DoS attack defense
802.1x security authentication
Radius security authentication
VLANIEEE 802.1Q VLAN
VLAN Layer-3 interfaces
Supports three port modes: Access, Trunk and Hybrid
DHCP ServerDHCP Relay
DHCP Snooping
Supports Option 82 policy configuration
Port aggregationStatic aggregation
LACP dynamic aggregation
Spanning treeIEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge port
Supports BPDU statistics
MulticastIGMP Snooping V1/V2/V3
Supports port fast leave
Port MirroringSupports N: 1 port mirroring
Quality of ServiceSP (Strict Priority)
SWRR (Simple Weighted Round Robin)
WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8-queue service quality mapping
ACLSupports MAC ACL and IP ACL
Loading and upgradeSupports FTP/TFTP/HTTP upgrade
Supports configuration import and export
Management and maintenanceSupports Telnet, Console
Supports SNMP V1/V2/V3
Supports WEB management and maintenance
Supports Ping/IPv6/Tracert/Connection Detection
CPU Monitoring and memory monitoring
