Overview in this module, you can enable or disable the guest network function and change the Wi-Fi name and password of the guest network.

A guest network can be set up with a shared bandwidth limit for visitors to access the internet, and is isolated from the main network. It protects the security of the main network and ensures the bandwidth of your main network. To access the configuration page, log in to the web UI of the Mesh device and navigate to More > Guest WiFi. This function is disabled by default.

The following figure shows the Guest WiFi page with the Guest WiFi function enabled.

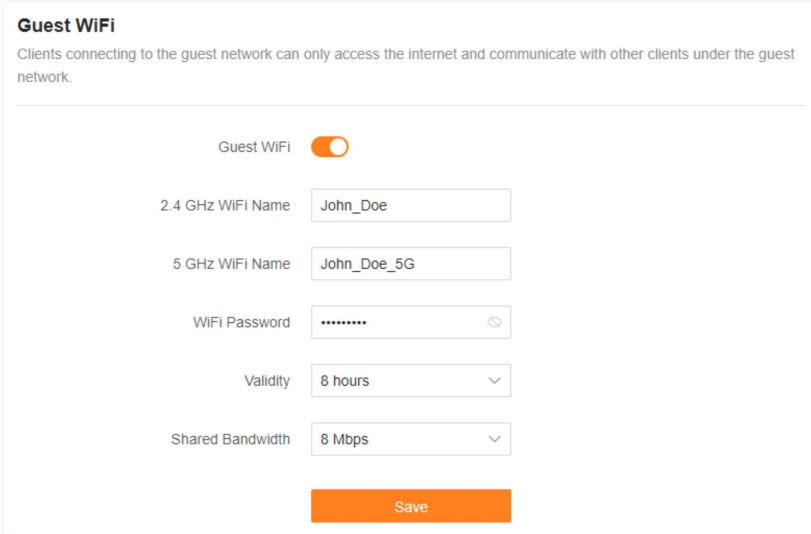

To achieve such a goal:

1 Log in to the web UI

2 Choose More > Guest WiFi.

3 Enable Guest WiFi.

4 Set 2.4 GHz WiFi Name, which is John_Doe in this example.

5 Set 5 GHz WiFi Name, which is John_Doe_5G in this example.

6 Set WiFi Password, which is Tenda+245 in this example.

7 Select a validity period from the Validity drop-down box, which is 8 hours in this example.

8 Set the bandwidth in the Shared Bandwidth drop-down box, which is 8 Mbps in this example.

9 Click “save”

During the 8 hours after the configuration, guests can connect their WiFi-enabled devices, such as smartphones, to John_Doe or John_Doe_5G to access the internet and enjoy the shared bandwidth of 8 Mbps.
