Take A33 as an example

Step 1

Plug the WiFi extender into a power outlet near the router in the same room. Wait until the LED indicator of the WiFi extender turns blinking red.

Step 2

Connect your laptop to the WiFi network of the WiFi extender: Tenda_EXT, or connect your desktop computer to the LAN port of the WiFi extender with an Ethernet cable.

Step 3

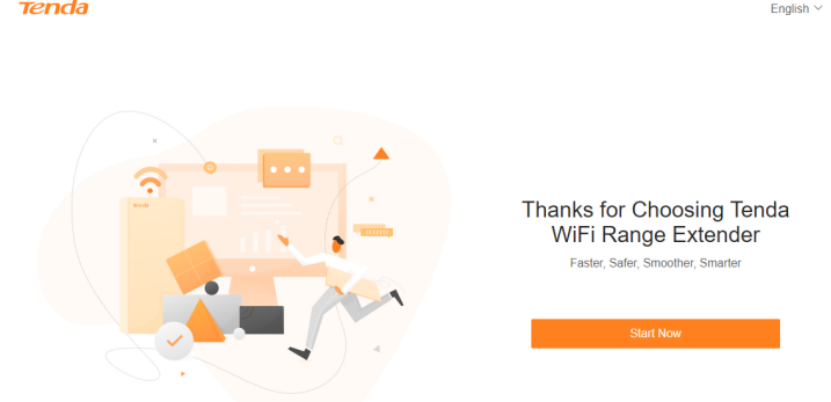

A quick setup page will appear automatically and then click Start Now.

Step 4

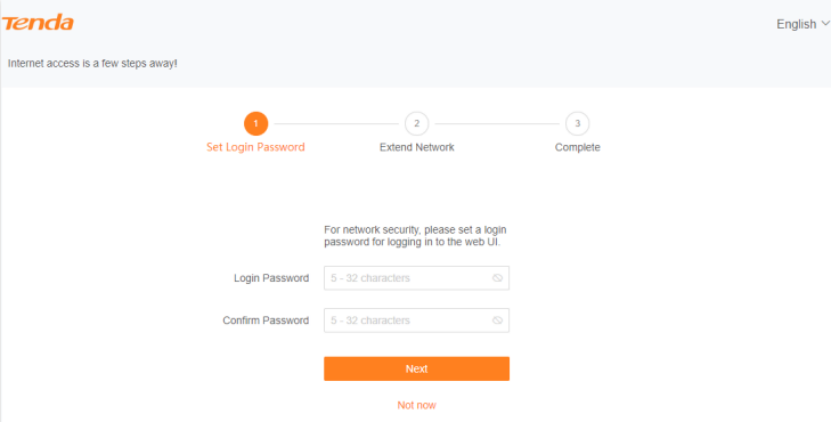

Set a login password and click Next.

Step 5

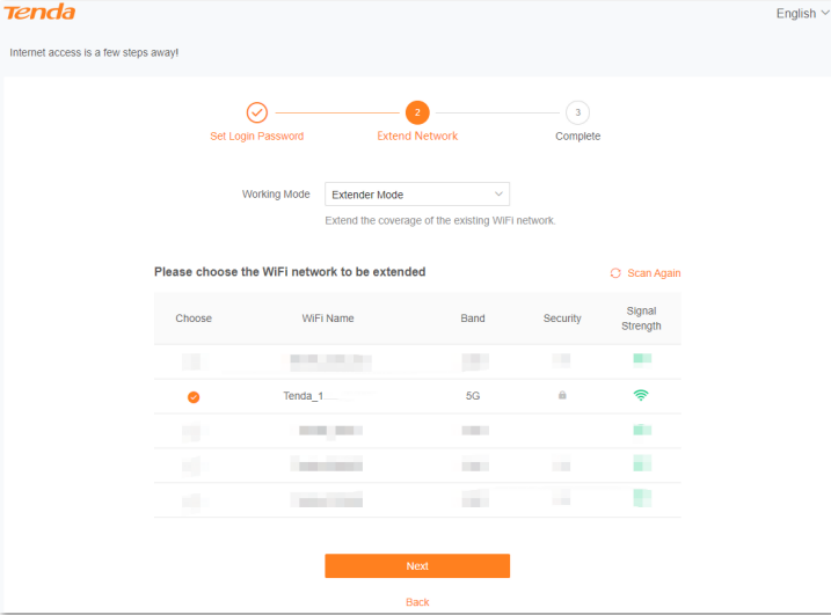

Set the Working Mode of the WiFi extender as Extender Mode, select the WiFi network you want to extend, and then click Next.

Step 6

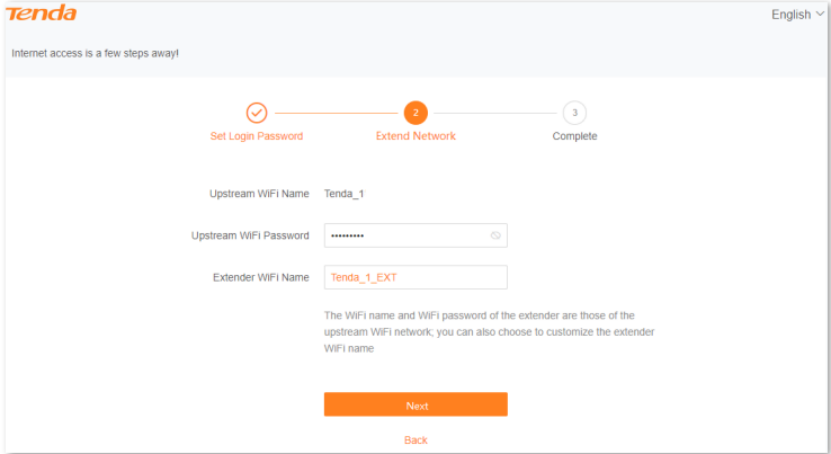

Enter the WiFi password of the WiFi network you selected, modify the extender WiFi name, and then click Next.

Step 7

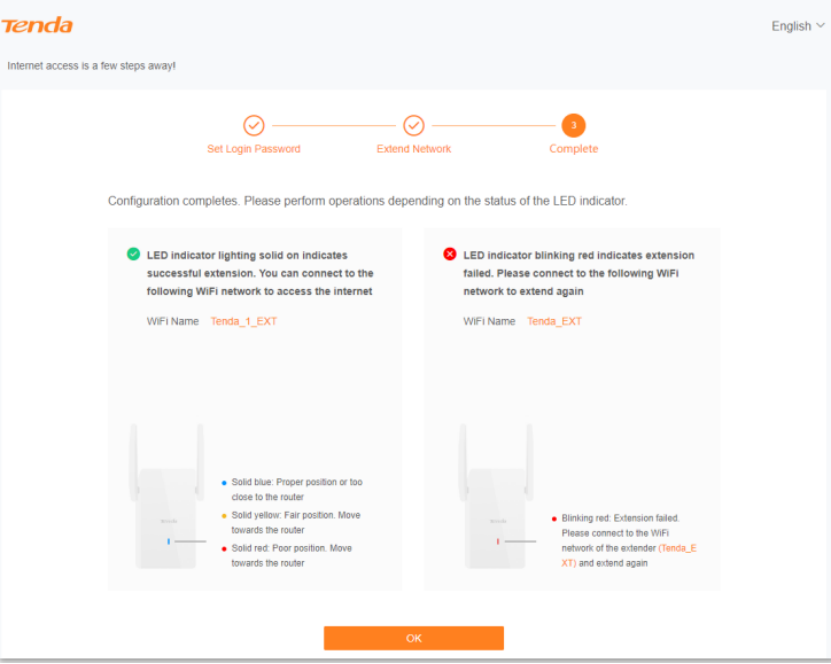

A progress box will pop up on the page, and then wait until the following page appears, configuration completed.
