How to extend your wireless network by button

Model number: A302

By pressing the EXTENDER button, you can achieve wireless bridging for extending wireless

network without complicated procedures. This feature will only be effective in range extender

mode. Steps are as follow. Before setting A302, please sure that you can get internet if you

connect your computer to upper router directly.

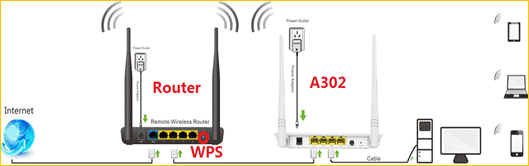

1.    Press the WPS or QSS button on your wireless router for 1~3 seconds, its WPS light

should be blinking.

2.    Press the EXTENDER button on the wireless range extender for 1~3 seconds.

3.     When the Range Extender LED light is solid on, the wireless range extender will be

connected to your desired router successfully. You can also login to the web management

interface to check bridge status.

Note: If the wireless range extender is connected to the remote router within 20 seconds,

the wireless range extender’s DHCP server will be disabled automatically. Thus, the wireless

range extender will get the IP assigned from the remote router and then you can access to

the Internet. We can still login its homepage with”tendaextender.net”.

 How to set range extender mode via management page? Click here.
