How to setup the router for PPPOE internet connection mode

Model number: F303

There are three internet connection modes for the router. This article will guide you how to

setup the router for PPPOE mode and the steps are as below.

Note: if you have no idea about the internet connection type and the accounts please call

your ISP for help.

Part 1: Connect the device

Part 2: Configure your computer

Part 3: Setup the router

Part 4: Check whether you can access internet

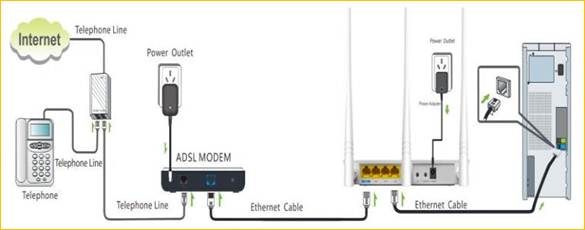

Connect the modem with the WAN port of the router, and then connect your computer with

one of the LAN ports of the router by a cable.

Note: After connection the SYS light should be blinking, the WLAN light should be on or

blinking, the WAN light should be on or blinking.

1 Click Network Connection Icon on the system tray, then click Open Network and Sharing

Center. (Here is for windows 7, other operating system please click HERE.)

2 Click on Change adapter settings.

3 Right click Local Area Connection, then choose Properties option.

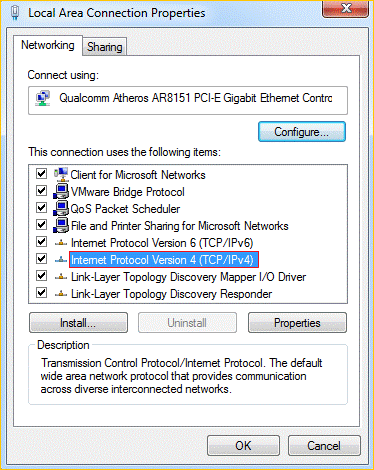

4 Double click on Internet Protocol Version 4(TCP/IPv4)

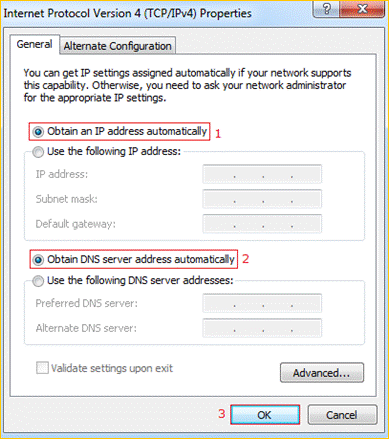

5 Choose Obtain an IP address automatically and Obtain DNS server address

automatically and then click OK.

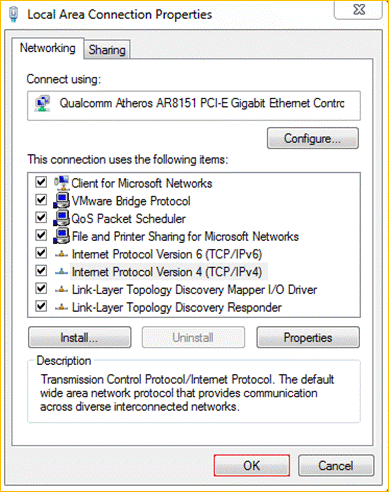

6 Also click OK on the first Local Connection Properties window

1 Open a browser then type 192.168.0.1 in address bar, click Enter.

Note: if you cannot login the home page, please click HERE.

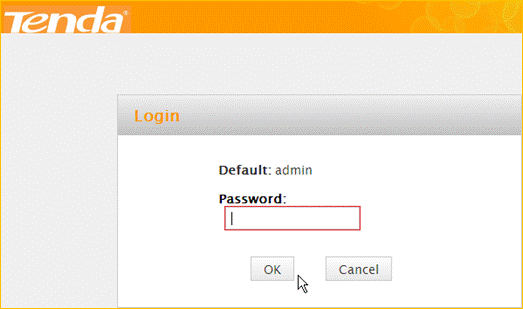

2 Fill in admin in the Password field, click OK to login.

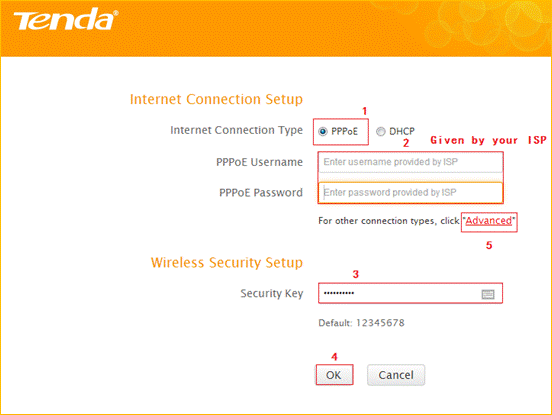

3 Choose the PPPOE option, then type the ISP Username and ISP Password in the correct

bars, then set a 2.4G Security as you want, click OK to save the settings, then click

Advanced to login the advanced setting page.

Note: the Security Key should be at least 8 characters.

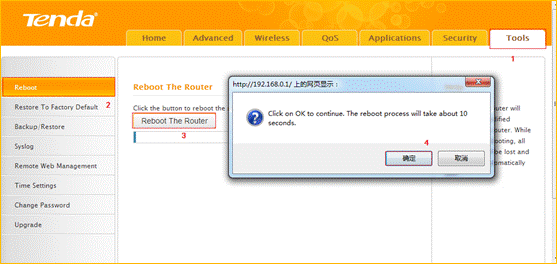

4 Click on Tools, then click on Reboot, and then press the Reboot The Router button to

reboot the router for refreshing the device info.

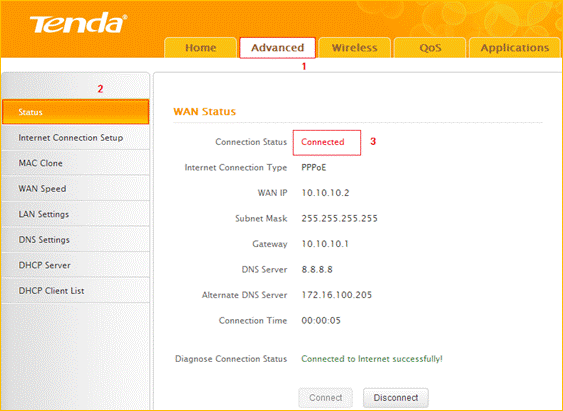

Type the User Name and Password as admin then Click on Advanced to login the advances

setting page, and then check on the Status if the Connection Status shows Connected

that means you can access internet, please check.
